Plug and play harness for ReFlex Plus for BMW G8X engine S58.
The TMS ReFlex Harness Kit is a plug and play harness designed for direct connection to the ReFlex Plus controller, improving reliability and reducing loose connections and lengthy troubleshooting.
Features
No splicing or permanent modifications required
Return car to stock if desired
Seamless connection with ReFlex Plus, ReFlex low pressure fuel sensor, and TMS Flex Fuel Kit
Ratings
CAN bus wire: SAE J2284 Communication Standard for High-Speed CAN (HSC) and CAN FD applications
Ensures no loss or corruption of data in critical systems
All other wires: SAE J1128 Low Voltage Primary Cable Standard
Suitable for sensors, power, and engine bay environments

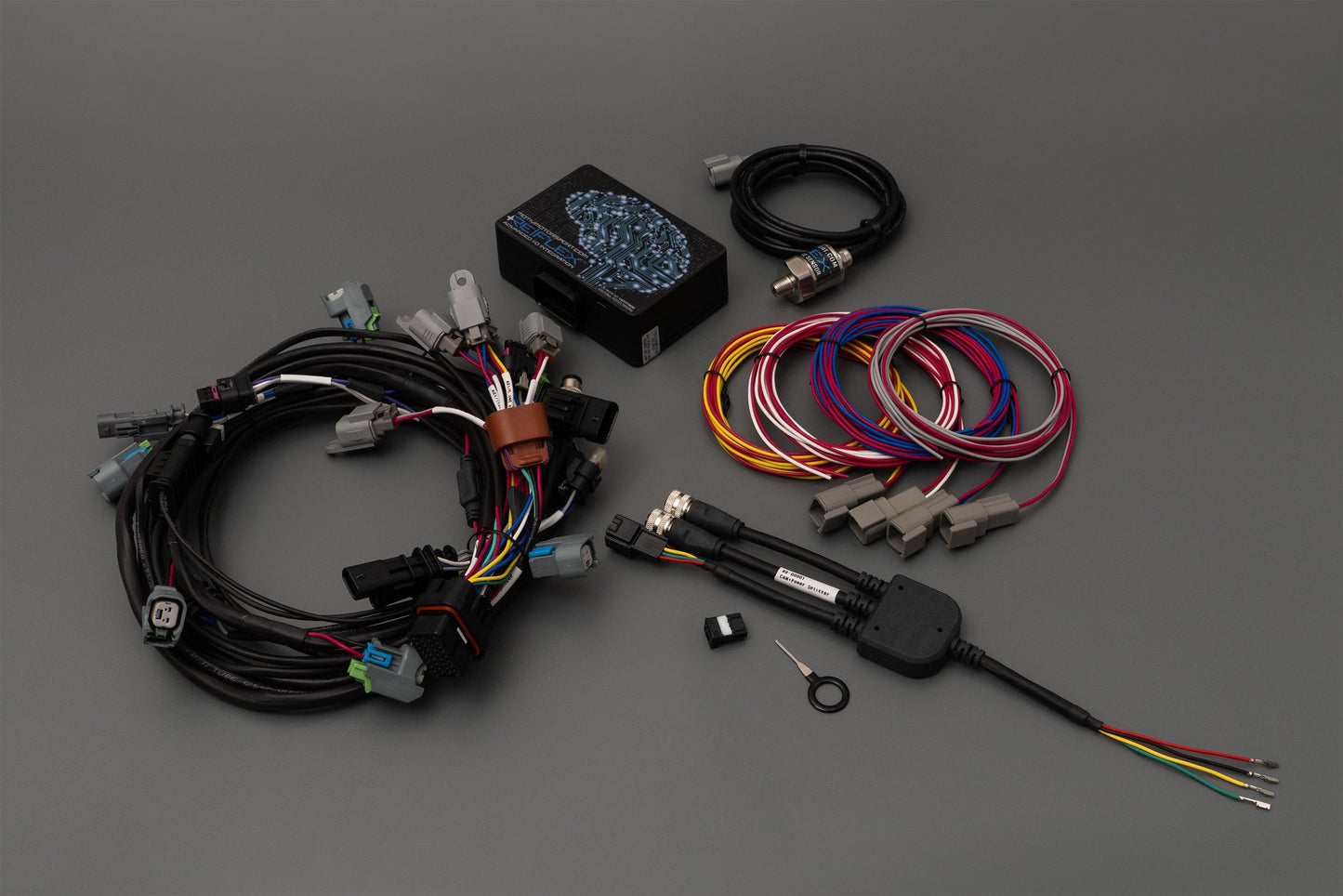

Included:

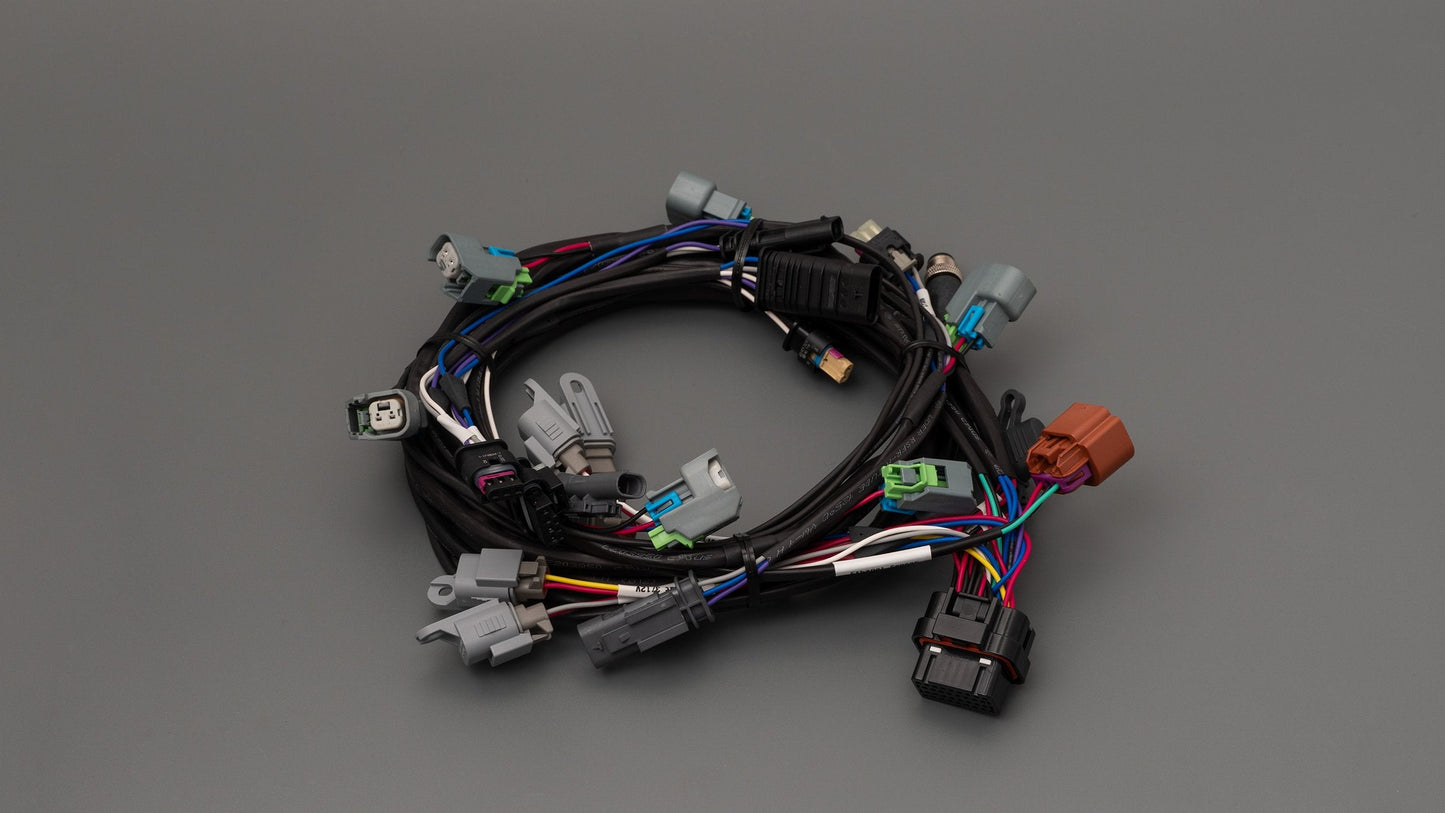

ReFlex™ plug and play harness
This plug and play harness connects to all of the following: port injection, ethanol sensor, low pressure fuel sensor, MAP, intake CAM, and crank sensor.

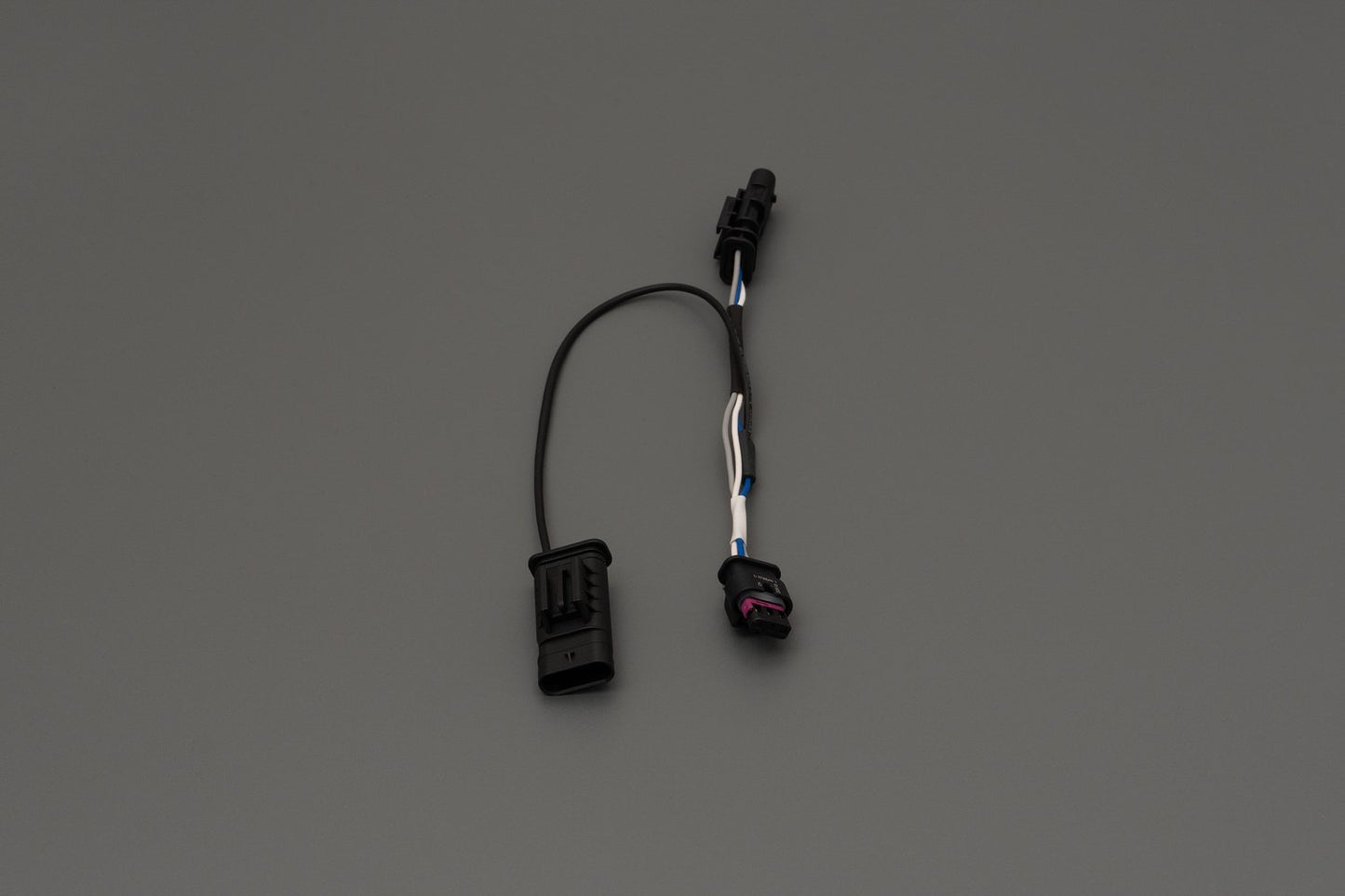

CAN + power splitter
The CAN + power splitter connects the harness to the body domain controller in the passenger footwell behind the kick-plate.
Auxiliary cable pack
Four additional cables are included to simplify future expansions such as additional sensors, methanol, or NOS. These 8 ft. cables plug directly into the unused ReFlex™ harness auxiliary ports Aux Out 1/2/3 and Aux in 4 (PSI).

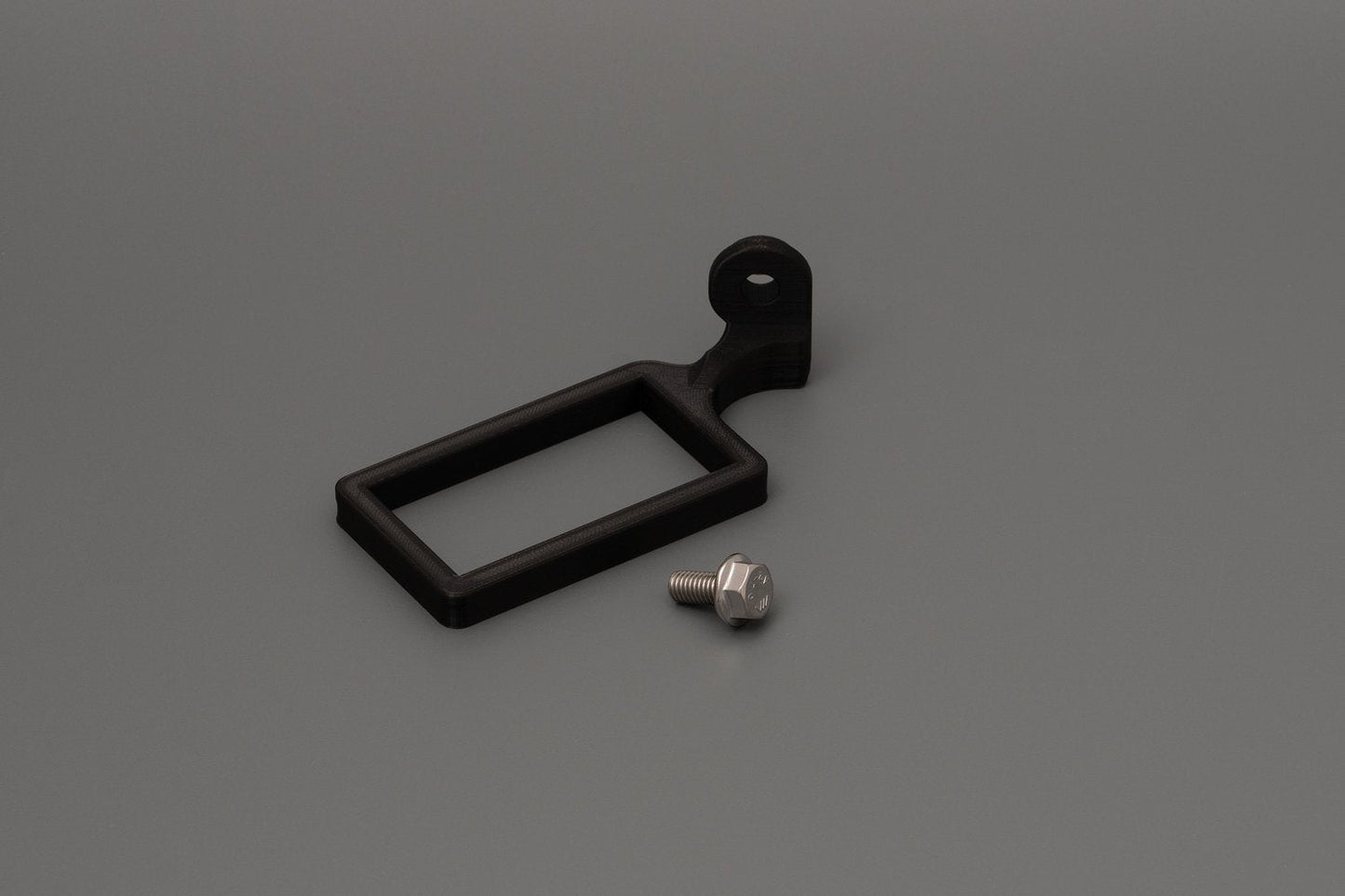

ReFlex Plus™ mounting bracket
The mounting bracket holds the ReFlex™ safely in place in the access compartment next to the engine bay on the passenger side.
Available with or without ReFlex Plus™ and Motiv™ 0-10 Bar Pressure Sensor
