Burger Motorsports

BMS Billet Strut Cross Braces for G20 G21 G22 G23 G26 G42 BMW (all engines)

BMS Billet Strut Cross Braces for G20 G21 G22 G23 G26 G42 BMW (all engines)

Regular price $249.00 USD
Regular price $279.00 USD Sale price $249.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

Designed and made in the USA from lightweight billet aluminum with the BMS logo engraved on the top middle. These strut braces are a solid one-piece design and give an exclusive look under the hood and extra stabilization to the chassis.

Not for use with the BMS B58 Billet intake and some aftermarket intakes. They do fit with the new BMS B58 BMW M240 M340 M440i Competition Performance Intake and of course the factory intake.

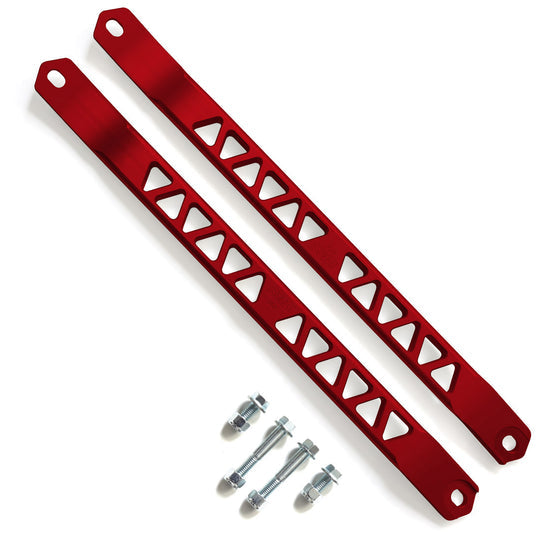

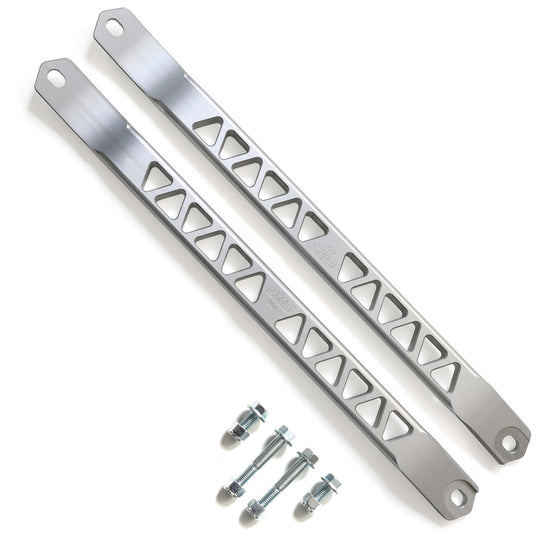

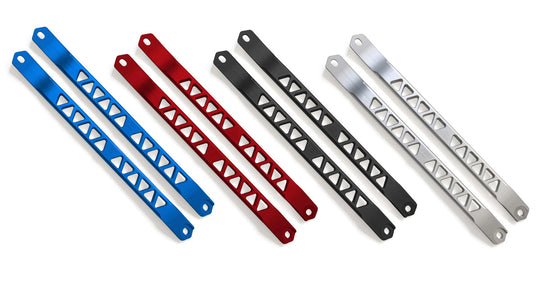

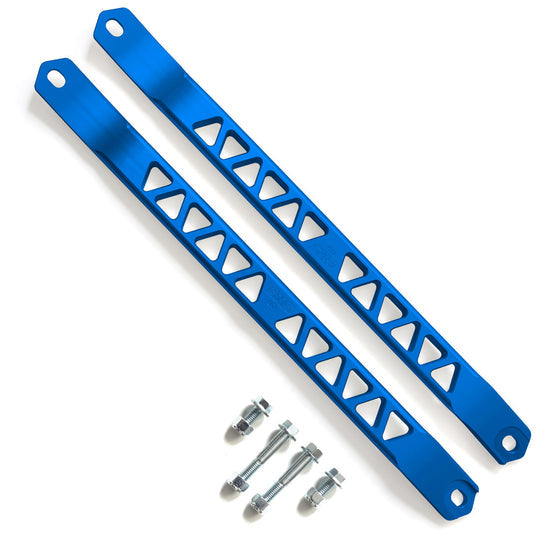

Sold in pairs. Available in Black, Silver, Blue, and Red anodized.

Burger Motorsports Kia Stinger Strut Cross Braces

FEATURES & BENEFITS

  • The perfect addition to your G2x BMW engine bay
  • Improved chassis rigidity
  • Decreased chassis flex during cornering
  • Made from a solid block of billet aluminum
  • Direct bolt-on replacement. No drilling is required.
  • Made in the USA

Vehicle Fitment

BMW 2 Series
• 2022+ G42 BMW 230i, M240i, and M240i xDrive

BMW 3 Series
• 2019+ G20 G21 BMW 318d, 320d, 320dx, 320i, 320iX, 325i, 330d, 330dx, 320i, 320iX, 330i, 330iX, 330e, M340i, and M340iX

BMW 4 Series
• 2021+ G22 G23 G26 430i, 430iX, M440, and M440iX including Gran Coupé

Not for use with the BMS B58 Billet intake and some aftermarket intakes.
Works with the new
BMS B58 BMW M340 Competition Performance Intake



What's Included:
Note: 430 and M440i use factory mounting bolts and don't come with mounting hardware.

(2) CNC machined billet aluminum strut braces
(2) Short flange bolts (front) (
M10 x 1.5 mm Thread, 40 mm Long)
(2) Long flange bolts (rear) (M8 x 1.25mm thread x 50mm long)
(2) lock nuts (M8 x 1.25mm Thread)


🔧 Installation instructions for vehicles with factory strut braces: Unbolt your factory strut braces, and replace them with the Burger Motorsports billet strut braces. Replace factory bolts. The BMS logos should be facing outward.

🔧 Installation instructions for vehicles without factory strut braces: When the BMS strut braces are placed on the car the BMS logos should be facing outwards. Place the longest supplied bolt through the upper brace bolt hole and through the strut tower all the way through to the front wheel well. Next place the shorter supplied bolt through the front brace hole, then attach the lock nut below and tighten. Next, attach the supplied lock nut to the bolt inside the wheel well and tighten it. Repeat on the other side.

BMW M340i M340ix 330i G20 2019 2020 2021 2022 Strut brace braces burger motorsports



Billet Strut Cross Braces Install Video for vehicle without factory strut braces

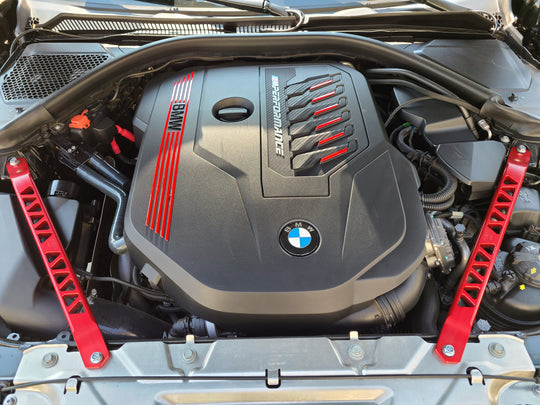

2022 G23 BMW M440i shown with our B58 Competition intake and B58 Oil Catch can.

BMW M440i with CAI cold air intake and billet strut braces

B58 M340i G20 G21 Strut Braces

Burger Motorsports BMS Billet Strut Braces for BMW z4 and Toyota Supra

BMW strut cross brace by Burger Motorsports Burger Tuning BMS G29 Z4 and 2020 2021 toyota supra

BMS Billet Strut Cross Braces for G20 BMW M340i M340iX 330i 330iX JB4 Burger Motorsports BMS
