BOOTMOD3 A90 A91 Toyota Supra Tune

World's First, Most Advanced and Widely Adopted cloud-based flash tuning platform for the BMW F and G series vehicles and the 2020+ Toyota Supra!

You must include your full VIN #. It can be found on your cars windshield in the lower driver side or on your vehicle registration.

Our latest development includes the addition of the bootmod3 CustomROM features that add advanced end user and tuning features such as:

• Map Switching On-The-Fly using steering wheel cruise control buttons. Flash the vehicle once and have access to 4 switchable maps on the steering wheel changing the calibration entirely from one map slot to the next
• Flex Fuel Tuning - Tune for any Ethanol blend by having a Flex Fuel sensor report Ethanol % to the engine control unit (DME) and have it manage the tune from regular petrol (0% Ethanol) to 100%, without re-flashing
• AntiLag - build boost while stationary or rolling by using steering wheel cruise button press and the Accelerator pedal allowing for insta-boost when roll racing or launching
• New Map Editor - advanced tuning editor with close to 5000 tuning tables available
• Datalogging of over 80 advanced (RAM) channels and hundreds of others available at highest throughput of any tool available on the market today
• Ethanol In-Dash Indicator - software changes applied to the DME to allow checking of your Ethanol content as reported by the Flex Fuel Sensor in the vehicle's dash on the RPM gauge (e.g. 2000rpm = 20% ethanol, 5500rpm = 55% ethanol)
• Transmission Torque Limiter disabled in software
• For details on CustomROM visit our Wiki

Cloud-based solution with a web-based interface for use with a laptop or with our mobile apps built for iOS and Android! Developed and tested in-house from the ground up since its debut in November 2016 with new features and updates being added regularly makes the bootmod3 platform a custom BMW factory DME tuning solution like no other on the market since.

Build the ultimate tune for your A90/A91 Supra and go from stock to full race calibration, and everywhere in between, with a map switch in the provided mobile app. bootmod3 calibrates the factory vehicle modules over the OBD port in a matter of minutes in the convenience of your driveway or anywhere internet access is available.

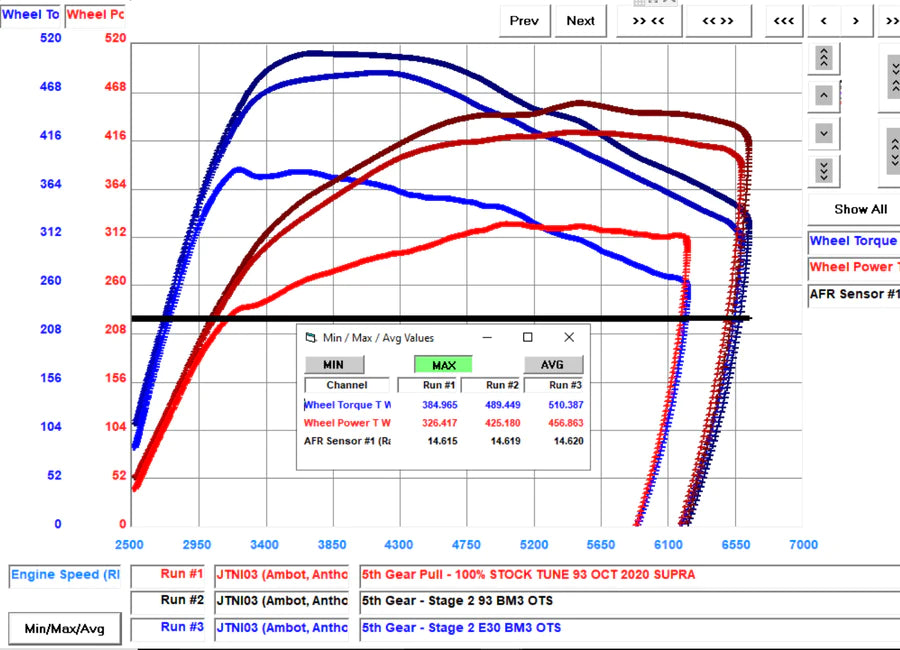

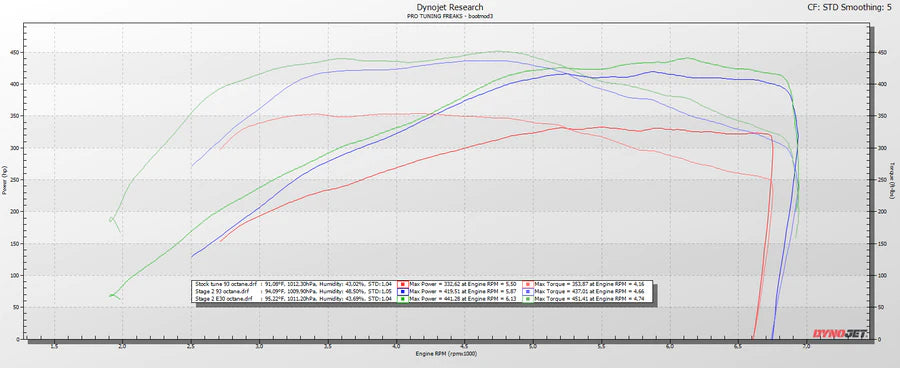

Stage 1 91 octane: up to 22% HP / 25% TQ
Stage 1 93 octane: up to 25% HP / 25% TQ
Stage 1 E30 octane: up to 28% HP / 27% TQ
Stage 2 91 octane: up to 26% HP / 28% TQ
Stage 2 93 octane: up to 28% HP / 28% TQ
Stage 2 E30 gas octane: up to 34% HP / 30% TQ
Stage 2 AGG (Aggressive burble) versions of maps also available.

bootmod3 app and cloud services offer many unique features not found in any other flash tune including and currently available:

• Mobile app (iOS and Android) and Web including Windows and macOS support
• One OTS map/tune included with the purchase and any other maps labeled as "FREE"
• Datalogging hundreds of diagnostic channels, up to 70+ channels concurrently with the highest throughput and sample rates available
• Datalog sharing and charting without a need to upload to 3rd party websites or apps using the mobile app or web browser
• Ability to log any internal RAM variable values with a number of preset ones available
• Cloud-based storage for map data and datalogs
• Reverting back to stock performance map and re-locking the DME to stock programming
• Live Dash - realtime vehicle parameter monitoring via in-app gauges
• Diagnostics
• Read and clear trouble codes in all vehicle modules
• Reset learned adaptations (octane, knock, Valvetronic, etc)
• ECU power reset
• (Optional) Off the shelf (OTS) tunes for 91/93/Race gas/E85 octane
• (Optional) Custom tuning available through tuners in the bootmod3 Tuner Directory. bootmod3 contains a full map editor so you can tune your car yourself or with your local tuner of choice as well.

Some of the OTS and possible aftermarket turbo upgrade custom map features provided by the bootmod3 platform:

• Map Customization through Map Editor
• Exhaust Burble adjustments on any map (OTS & Custom)
• GTS Startup Roar
• Max Cooling Mode
• Cold start (cat heating on startup) removal for quieter cold start
• Cat efficiency check (CEL) removal for de-cat downpipes (for off-road use)
• Exhaust Flap Adjustments (Sport Mode)
• Top Speed Limiter Removal
• Exhaust OPF/PPF/GPF Removal
• Boost By Gear % Reduction
• DTC Deactivation
• Re-calibrated Sport Gauges on iDrive
• E85/blend, RaceGas, and Meth Injection Tuning
• Custom Throttle Mapping
• Backend Flash Maps for Piggyback Use

B58 engine BMW Vehicles supported (if your B58 vehicle is not listed please inquire with us):

• 2020–present A90/J29 Toyota Supra

***2020 Supra Models with November 2019+ software require a bench unlock. If you have November 2019 software update, feel free to contact support@protuningfreaks.com for details

*** OBD ENET cable required, available separately

*** bootmod3 OBD WiFi Adapter device is not required to use the bootmod3 platform. It is a convenient option that removes the need for using a laptop in the car when using bootmod3's features.

***Direct ENET Cable connection to an iOS or Android device without having to use the BM3 WiFi Adapter.

VEHICLE MANUFACTURER WARRANTY AND EMISSIONS DISCLAIMER

Some items used and/or installed by PRO TUNING FREAKS may void portions of your vehicle’s factory warranty. Some items may not be legal for “on highway use”. PRO TUNING FREAKS makes no guarantees to the legality of any parts used for “on highway vehicles” and accepts no responsibility for compliance with the vehicle’s factory warranty.

All orders are final once the license key as been sent out.

OTS MAP PACK ADDON:

In case your modifications or octane change or you'd like to try a different OTS map more suited to your needs we offer this OTS Maps Bundle which provides flash access to ALL of the OTS Maps available in the OTS Maps screen for your vehicle.
