BM3

BOOTMOD3 B58 Tune - BMW FXX GXX 140I 240I 340I 440I 540I 640I 740I 840I Z4M40I M140I M340I X3 M40I X7

BOOTMOD3 B58 Tune - BMW FXX GXX 140I 240I 340I 440I 540I 640I 740I 840I Z4M40I M140I M340I X3 M40I X7

Regular price $595.00 USD
Regular price Sale price $595.00 USD
Sale Sold out
Shipping calculated at checkout.
Include OTS Map Pack?

World's First, Most Advanced and Widely Adopted cloud-based flash tuning platform for the BMW F and G series vehicles.



You must include your full VIN #. It can be found on your cars windshield in the lower driver side or on your vehicle registration.


Our latest development includes the addition of the bootmod3 CustomROM features that add advanced end user and tuning features such as:

AntiLag - build boost while stationary or rolling by using steering wheel cruise button press and the Accelerator pedal allowing for insta-boost when roll racing or launching
Map Switching - On-The-Fly using steering wheel cruise control buttons. Flash the vehicle once and have access to 4 switchable maps on the steering wheel changing the calibration entirely from one map slot to the next
Flex Fuel Tuning - Tune for any Ethanol blend by having a Flex Fuel sensor report Ethanol % to the engine control unit (DME) and have it manage the tune from regular petrol (0% Ethanol) to 100%, without re-flashing

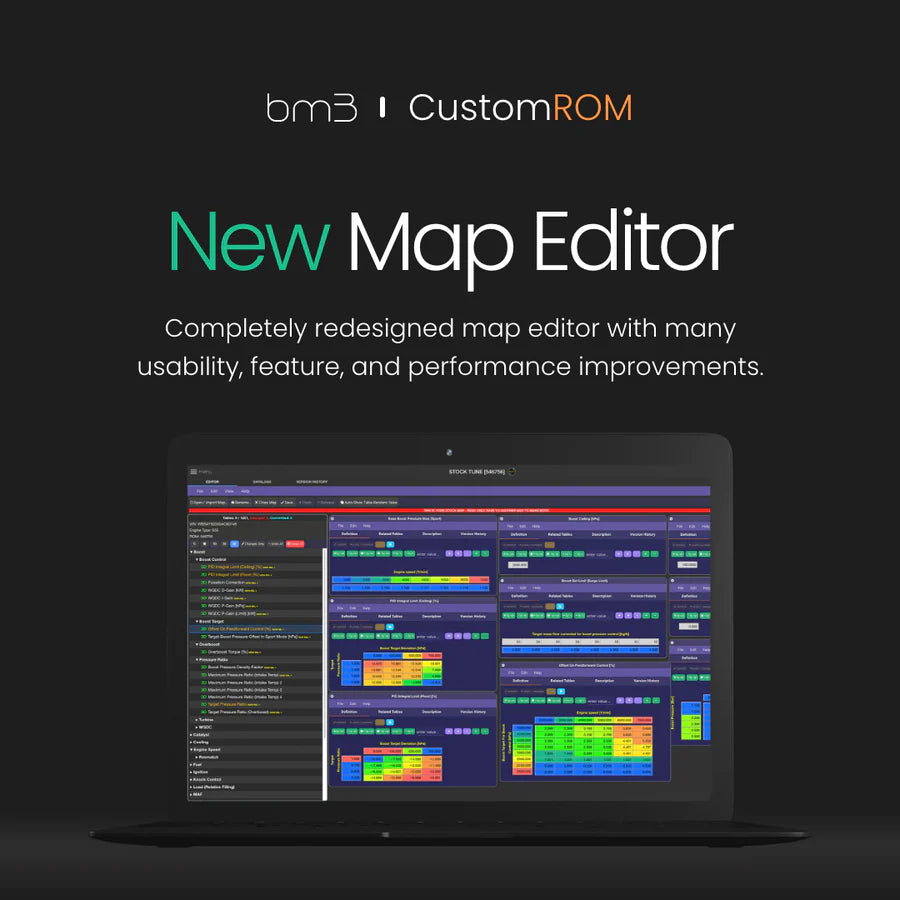

New Map Editor - advanced tuning editor with close to 5000 tuning tables available
Datalogging of over 80 advanced (RAM) channels and hundreds of others available at highest throughput of any tool available on the market today
Ethanol In-Dash Indicator - software changes applied to the DME to allow checking of your Ethanol content as reported by the Flex Fuel Sensor in the vehicle's dash on the RPM gauge (e.g. 2000rpm = 20% ethanol, 5500rpm = 55% ethanol)
Transmission Torque Limiter disabled in software
For details on CustomROM visit our Wiki by clicking HERE
Build the ultimate tune for your B58 engine powered vehicle and go from stock to full race calibration, and everywhere in between, with a map switch in the provided mobile app. bootmod3 calibrates the factory vehicle modules over the OBD port in a matter of minutes in the convenience of your driveway or anywhere internet access is available.

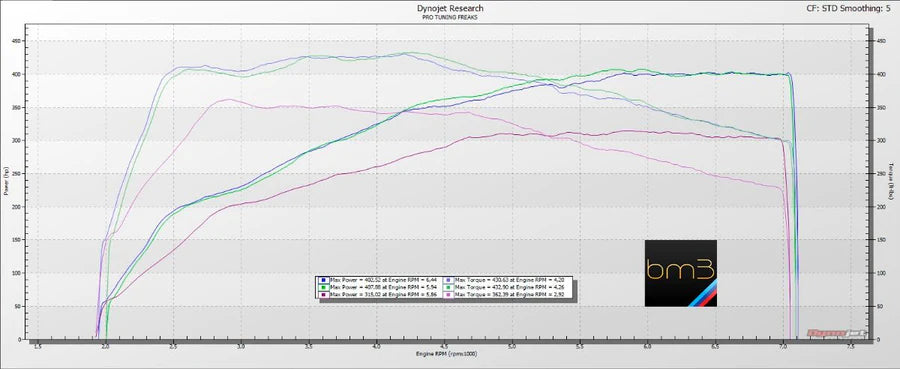

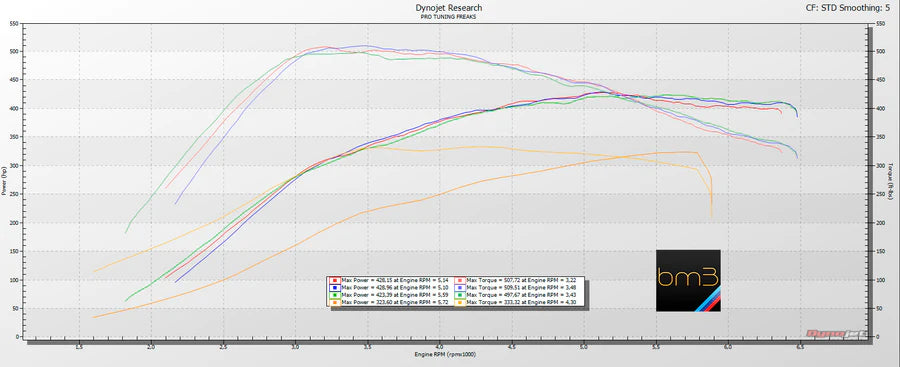

Stage 1 91 octane: up to 18% HP / 26% TQ
Stage 1 93 octane: up to 20% HP / 26% TQ
Stage 1 E30 octane: up to 25% HP / 30% TQ
Stage 2 91 octane: up to 24% HP / 32% TQ
Stage 2 93 octane: up to 26% HP / 32% TQ
Stage 2 E30 octane: up to 30% HP / 35% TQ
Stage 2 Racegas: up to 30% HP / 35% TQ
Stage 2+ 91 octane: up to 37% HP / 62% TQ
Stage 2+ 93 octane: up to 43%HP / 68% TQ
Stage 2+ E30 octane: up to 47%HP / 73% TQ
Stage 2 AGG (Aggressive burble) versions of maps available
Based on NON-MPPK version cars

B58-D Engine Vehicles (2020+ G20 M340, X3 M40i, X4 M40i)
Stage 1 91 octane: up to 18% HP / 28% TQ
Stage 1 93 octane: up to 21% HP / 30% TQ
Stage 1 E30 octane: up to 28% HP / 34% TQ
Stage 2 91 octane: up to 22% HP / 33% TQ
Stage 2 93 octane: up to 25% HP / 35% TQ
Stage 2 E30 octane: up to 31% HP / 38% TQ
Stage 2 AGG (Aggressive burble) versions of maps available
Based on NON-MPPK version cars

bootmod3 app and cloud services offer many unique features not found in any other flash tune including and currently available:

Mobile app (iOS and Android) and Web including Windows and macOS support
One OTS map/tune included with the purchase and any other maps labeled as "FREE"
Datalogging hundreds of diagnostic channels, up to 70+ channels concurrently with the highest throughput and sample rates available
Datalog sharing and charting without a need to upload to 3rd party websites or apps using the mobile app or web browser
Cloud-based storage for map data and datalogs
Ability to log any internal RAM variable values with a number of preset ones available
Reverting back to stock performance map and re-locking the DME to stock programming
Live Dash - realtime vehicle parameter monitoring via in-app gauges
Diagnostics
Read and clear trouble codes in all vehicle modules
Reset learned adaptations (octane, knock, Valvetronic, etc)
ECU power reset
(Optional) Off the shelf (OTS) tunes for 91/93/Race gas/E85 octane
(Optional) Custom tuning available through tuners in the bootmod3 Tuner Directory. bootmod3 contains a full map editor so you can tune your car yourself or with your local tuner of choice as well.
Some of the OTS and possible aftermarket turbo upgrade custom map features provided by the bootmod3 platform:

Map Customization through Map Editor
Exhaust Burble adjustments on any map (OTS & Custom)
GTS Startup Roar
Max Cooling Mode
Cold start (cat heating on startup) removal for quieter cold start
Cat efficiency check (CEL) removal for de-cat downpipes (for off-road use)
Exhaust Flap Adjustments (Sport Mode)
Top Speed Limiter Removal
Electronic Wastegate (EWG) Disable
Custom High-Pressure Fuel Pump Settings
Exhaust OPF/PPF/GPF Removal
Boost By Gear % Reduction
Re-calibrated Sport Gauges on iDrive
Maps for upgraded turbos
E85/blend, RaceGas, and Meth Injection Tuning
Custom Throttle Mapping
Backend Flash Maps for Piggyback Use
B58 engine BMW Vehicles supported (if your B58 vehicle is not listed please inquire with us):

2016–2019 F20/F21 M140i
2016–present F22/F23 M240i
2016–2019 F30/F31/F34 340i
2016–present F32/F33/F36 440i
2017-present G01 X3 M40i
2018-present G02 X4 M40i
2018-present G07 X7 xDrive40i
2019-present G20 M340i
2017–present G30/G31 540i
2017–present G32 640i
2016–present G11/G12 740i
2020-present G14/G15/G16 840i
2018-present G29 Z4 M40i

2021–present G42 M240i

For more info take a look at the FAQ here!

*** Vehicles with November 2019+ software may require DME unlock done on the bench to enable OBD flashing. If you have the November 2019+ software update, feel free to contact support@protuningfreaks.com for details

*** OBD ENET cable, or WiFi adapter, required, available separately (Amazon $20)

VEHICLE MANUFACTURER WARRANTY AND EMISSIONS DISCLAIMER

Some items used and/or installed by PRO TUNING FREAKS may void portions of your vehicle’s factory warranty. Some items may not be legal for “on highway use”. PRO TUNING FREAKS makes no guarantees to the legality of any parts used for “on highway vehicles” and accepts no responsibility for compliance with the vehicle’s factory warranty.

All orders are final once the license key as been sent out.



OTS MAP PACK ADDON:

In case your modifications or octane change or you'd like to try a different OTS map more suited to your needs we offer this OTS Maps Bundle which provides flash access to ALL of the OTS Maps available in the OTS Maps screen for your vehicle.

View full details

BM3 Vehicle Compatibility and Unlock Status Check Procedure

Connect to your vehicle, (you need to get an OBD2 Ethernet cable and an MFI certified adapter cable if applicable or a WiFi adapter) start the OBD agent (you can get it here: https://www.bootmod3.net/downloads/ or our APP) and before you’re about to log in on https://www.bootmod3.net , click on the ‘check support' button on the right-hand side. If using our app, login, click on vehicle and you should have this information (if locked or unlocked) already displayed on that page.

Message written in bold letters under your software ID's will let you know if we have support for your engine type. It will also tell you if you need a bench unlock or not, and what type of an unlock is needed if you do need one.

If the message states that your DME requires a bench unlock before flash-tuning your vehicle, you will need to reach out to one of our authorized dealers and inquire about a bench unlock. The listing for all of our authorized dealers can be found in the link attached below.
