BOOTMOD3 S63TU Tune - BMW F10 F12 F13 F85 F86 M5 M6 X5M X6M

BOOTMOD3 S63TU Tune - BMW F10 F12 F13 F85 F86 M5 M6 X5M X6M

Regular price $895.00 USD
Regular price Sale price $895.00 USD
Sale Sold out
Shipping calculated at checkout.
Include OTS Map Pack?

World's First, Most Advanced and Widely Adopted cloud based flash tuning platform for the BMW F and G series vehicles!



You must include your full VIN #. It can be found on your cars windshield in the lower driver side or on your vehicle registration.

Cloud-based solution with a web-based interface and mobile apps for iOS and Android. Developed and tested in-house from the ground up over the course of almost 2 years prior to its November 2016 debut with new features and updates being added regularly makes the bootmod3 platform a custom BMW factory DME tuning solution like no other on the market today.

Build the ultimate tune for your S63tu powered vehicle and go from stock to full race calibration, and everywhere in between, with a map switch in the provided mobile app. bootmod3 calibrates the factory vehicle modules over the OBD port in a matter of minutes in the convenience of your driveway or anywhere internet access is available.

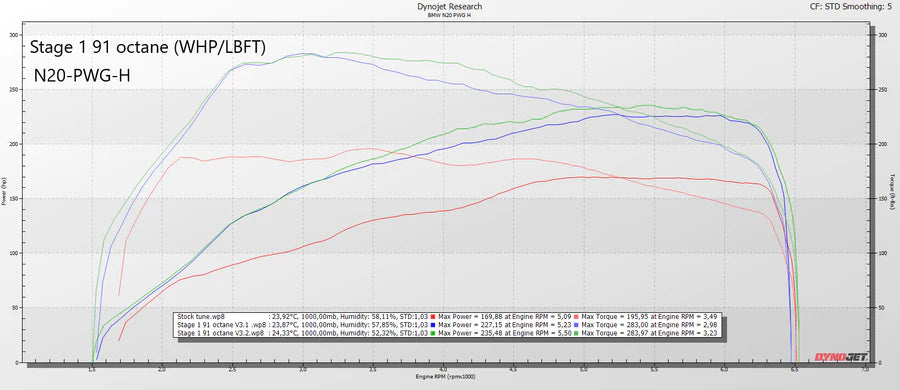

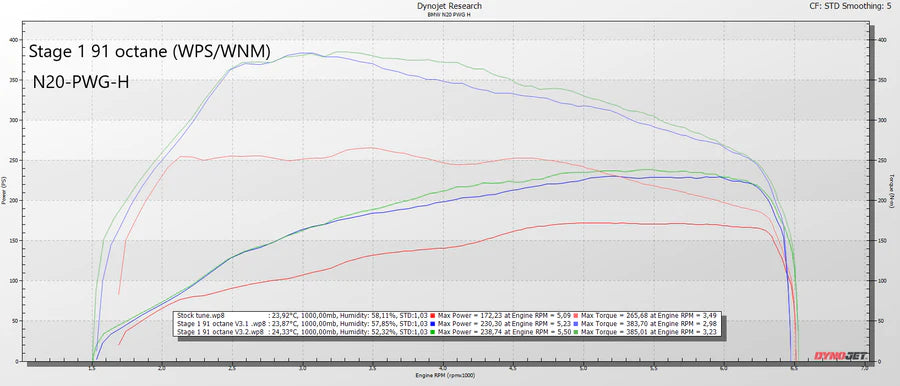

Stage 1 91 octane: up to 16% HP / 26% TQ
Stage 1 93 octane: up to 18% HP / 28% TQ
Stage 2 91 octane: up to 20% HP / 30% TQ

Stage 2 93 octane: up to 22% HP / 31% TQ
Stage 2 Racegas: up to 26% HP / 31% TQ
Stage 2 AGG (Aggressive burble) versions of maps also available.

bootmod3 app and cloud services offer many unique features not found in any other flash tune including and currently available:

  • Mobile app (iOS and Android) and Web including Windows and macOS support
  • One OTS map/tune included with the purchase and any other maps labeled as "FREE"
  • Datalogging hundreds of diagnostic channels, up to 70+ channels concurrently with the highest throughput and sample rates available
  • Datalog sharing and charting without a need to upload to 3rd party websites or apps using the mobile app or web browser
  • Ability to log any internal RAM variable values with a number of preset ones available
  • Cloud-based storage for map¬†data¬†and datalogs
  • Reverting back to stock performance¬†map and re-locking the DME to stock programming
  • Live Dash - realtime vehicle parameter monitoring via in-app gauges
  • Diagnostics
  • Read and clear trouble codes in all vehicle modules
  • Reset learned adaptations (octane, knock, Valvetronic, etc)
  • ECU power reset
  • (Optional) Off the shelf (OTS) tunes for 91/93/Race gas/E85 octane
  • (Optional)¬†Custom tuning available through tuners in the bootmod3 Tuner Directory. bootmod3 contains a full map editor so you can tune your car yourself or with your local tuner of choice as well.

    Some of the OTS and possible aftermarket turbo upgrade custom map features provided by the bootmod3 platform:

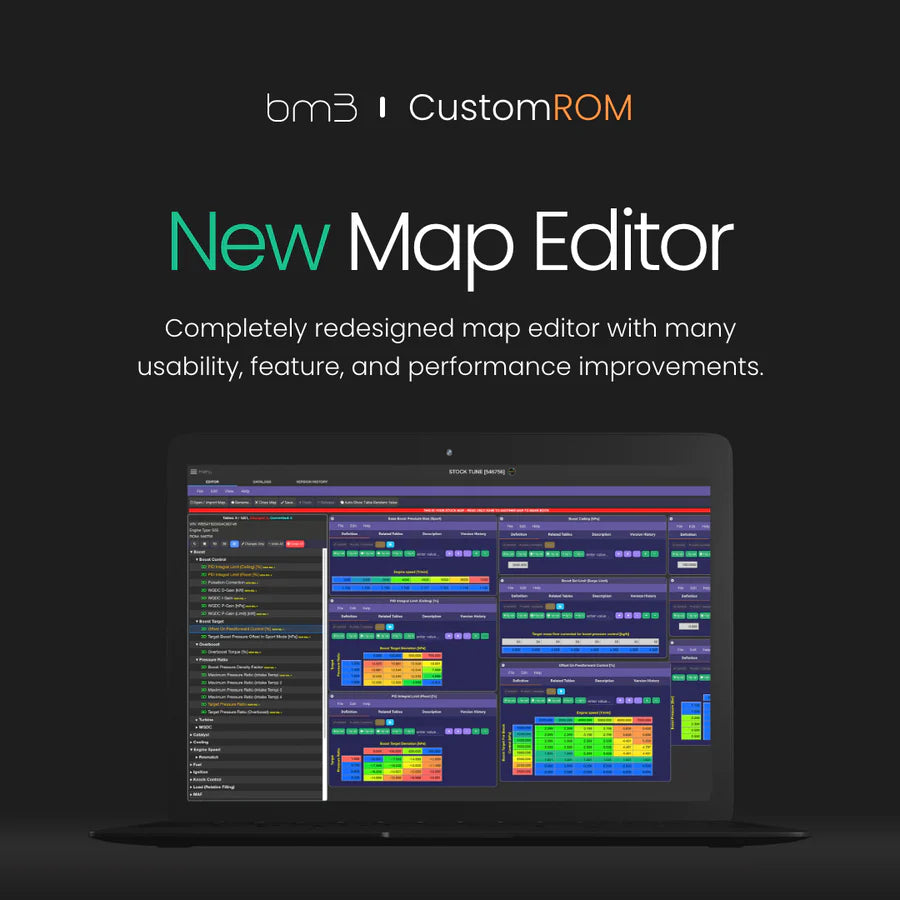

    • Map Customization through Map Editor
    • Max Cooling Mode
    • Cold start (cat heating on startup) removal for quieter cold start
    • Cat efficiency check (CEL)¬†removal for de-cat downpipes (for off-road use)
    • Custom TMAP Sensor¬†Adjustments
    • Exhaust Flap Adjustments (Sport Mode)
    • Top Speed Limiter Removal
    • Custom High-Pressure Fuel Pump Settings
    • Boost By Gear % Reduction
    • DTC Deactivation
    • Re-calibrated Sport Gauges¬†on iDrive
    • E85/blend, RaceGas, and Meth Injection Tuning
    • Custom Throttle Mapping
    • Backend Flash Maps for Piggyback Use

    S63tu engine BMW Vehicles supported:

    • 2011‚Äď2017 F10 M5
    • 2012‚Äď2018 F12/13 M6
    • 2013‚Äď2018 F06 M6 Gran Coupe
    • 2015‚Äď2019 F85 X5 M
    • 2015‚Äď2019 F86 X6 M

    *** OBD ENET cable required, available separately

    *** bootmod3 OBD WiFi Adapter device is not required to use the bootmod3 platform. It is a convenient option that removes the need for using a laptop in the car when using bootmod3's features.

    ***Direct ENET Cable connection to an iOS or Android device without having to use the BM3 WiFi Adapter.

    VEHICLE MANUFACTURER WARRANTY AND EMISSIONS DISCLAIMER

    Some items used and/or installed by PRO TUNING FREAKS¬†may void portions of your vehicle‚Äôs factory warranty. Some items may not be legal for ‚Äúon highway use‚ÄĚ. PRO TUNING FREAKS¬†makes no guarantees to the legality of any parts used for ‚Äúon highway vehicles‚ÄĚ and accepts no responsibility for compliance with the vehicle‚Äôs factory warranty.¬†

    All orders are final once the license key as been sent out.



    OTS MAP PACK ADDON:

    In case your modifications or octane change or you'd like to try a different OTS map more suited to your needs we offer this OTS Maps Bundle which provides flash access to ALL of the OTS Maps available in the OTS Maps screen for your vehicle.

    View full details

    BM3 Vehicle Compatibility and Unlock Status Check Procedure

    Connect to your vehicle, (you need to get an OBD2 Ethernet cable and an MFI certified adapter cable if applicable or a WiFi adapter) start the OBD agent (you can get it here: https://www.bootmod3.net/downloads/ or our APP) and before you‚Äôre about to log in on https://www.bootmod3.net , click on the ‚Äėcheck support' button on the right-hand side. If using our app, login, click on vehicle and you should have this information (if locked or unlocked) already displayed on that page.

    Message written in bold letters under your software ID's will let you know if we have support for your engine type. It will also tell you if you need a bench unlock or not, and what type of an unlock is needed if you do need one.

    If the message states that your DME requires a bench unlock before flash-tuning your vehicle, you will need to reach out to one of our authorized dealers and inquire about a bench unlock. The listing for all of our authorized dealers can be found in the link attached below.
