bootmod3 is a cloud-based flash tuning platform for BMW F- and G-series cars. It reprograms the factory engine computer (DME) in your S55-powered BMW through the OBD port, from your driveway or anywhere you have an internet connection. A flash takes just a few minutes, and you can go from a mild street map to a full race calibration with a map change in the app.

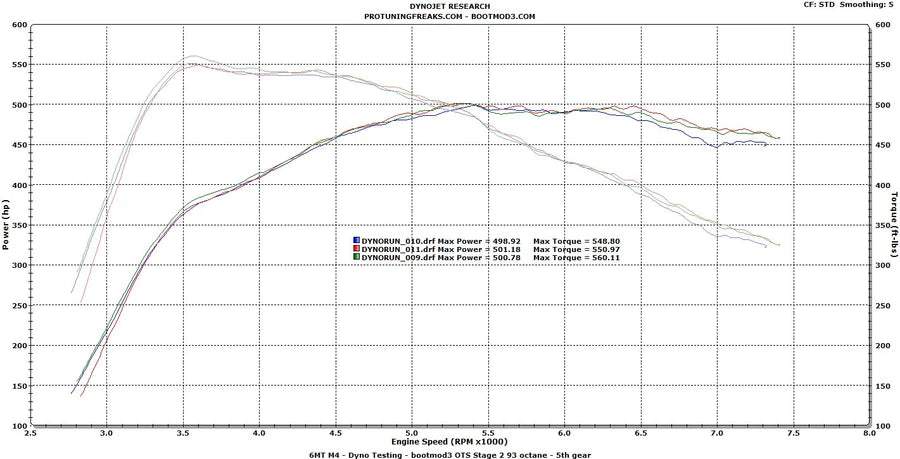

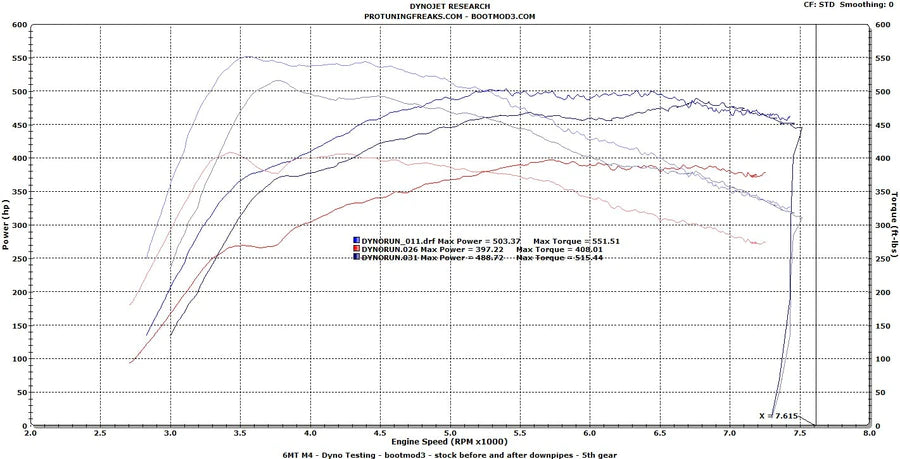

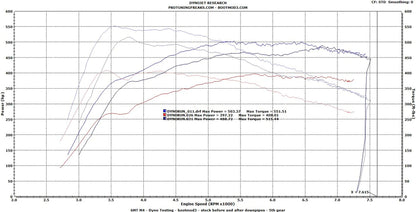

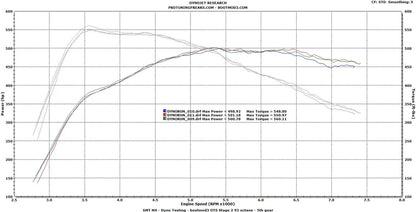

Estimated power gains
Maximum gains over stock from bootmod3’s off-the-shelf (OTS) maps. Your results will depend on the car, its modifications, fuel quality and conditions.
Horsepower gain Torque gain
Stage 1
Stage 2
Stage 2H
Aggressive-burble (AGG) versions of the Stage 2 maps are also available.
Supported vehicles (S55)
- 2014–2020 F80 M3
- 2014–2020 F82/F83 M4
- 2018–present F87 M2 Competition
CustomROM features
CustomROM adds advanced functions on top of the standard tune:
- On-the-fly map switching: flash once, then swap between up to 4 stored maps using the steering-wheel cruise control buttons
- Flex fuel support: with a flex fuel sensor fitted, the DME reads ethanol content and adjusts the tune anywhere from straight pump gas to E100 without a reflash
- Anti-lag: build boost from a stop or on the move with a cruise-button press and throttle, for harder launches and roll races

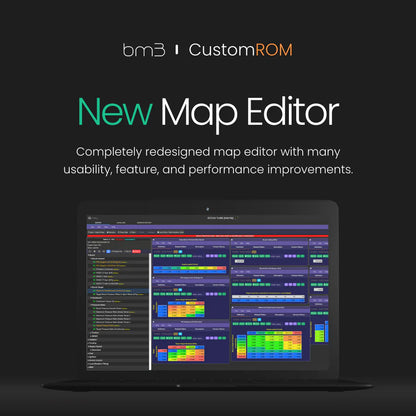

- Map editor with roughly 5,000 adjustable tables
- High-speed logging of 80+ advanced RAM channels on top of hundreds of standard channels
- Ethanol readout on the dash: the tachometer needle shows the blend reported by the flex fuel sensor (for example, 3,000 rpm means 30% ethanol)
bootmod3 app and platform
- Use it from the iOS or Android app, or in a web browser on Windows or macOS
- One off-the-shelf (OTS) map of your choice included, plus any maps marked FREE
- Datalogging across hundreds of diagnostic channels, up to 70+ at a time, at high sample rates
- View, chart and share datalogs in the app or browser, with no third-party upload sites needed
- Log any internal RAM variable, with a library of preset variables
- Maps and datalogs stored in the cloud
- GTS/CS transmission flash included for DCT-equipped cars
- Go back to the stock map and relock the DME to factory programming whenever you like
- Live Dash: real-time in-app gauges
- Diagnostics: read and clear fault codes in every module, reset learned adaptations (octane, knock, Valvetronic and more) and run an ECU power reset
- Optional OTS maps for 91, 93, race gas and E85
- Optional custom tuning from tuners in the bootmod3 Tuner Directory, or use the built-in map editor to tune it yourself or with your own tuner
Available map options
Depending on your map and setup, the platform supports:
- Map customization in the map editor
- Adjustable exhaust burble on OTS and custom maps
- GTS-style startup roar
- Max cooling mode
- Quieter cold starts (startup cat-heating routine removed)
- Catalyst efficiency check removed for de-cat downpipes (off-road use only)
- OPF/GPF/PPF delete support
- Electronic wastegate (EWG) disable
- Custom TMAP sensor settings
- Exhaust flap control in Sport mode
- Top speed limiter removed
- Custom high-pressure fuel pump settings
- Boost reduction by gear (%)
- DTC deactivation
- Recalibrated iDrive sport gauges
- Maps for upgraded turbos
- E85/ethanol blend, race gas and methanol injection tuning
- Custom throttle mapping
- Backend flash maps for running a piggyback
What you need
- A bootmod3 Wi-Fi adapter or an OBD ENET cable (sold separately)
- A phone, tablet or computer running iOS 13+, Android 5.0+, Windows 10+ or macOS 10.15 (Catalina) or newer
Before you order
- Include your full VIN with your order. You’ll find it at the lower driver-side corner of the windshield and on your vehicle registration.
- 2019+ S55 cars running March 2019 or later DME software need a bench unlock before they can be flashed. Contact us before ordering if that applies to your car.
- License sales are final once the license key has been issued.
OTS Map Pack add-on
Your license includes one OTS map. Choose the Map Pack option to unlock every OTS map available for your car, so you can switch maps if you add parts or change fuel later.
Warranty and emissions: engine tuning may affect your vehicle’s factory warranty, and some features may not be legal for use on public roads. Check the rules where you live; compliance with warranty terms and local laws is the buyer’s responsibility.
