Greddy 10 Row Oil Cooler Kit Toyota GR86/Subaru BRZ 2022

● Core position: Inside the right fender
● Thermostat: Built-in (operating temperature 75 ° C to 82 ° C ± 2 ° C)
● Hose: Earl's Pro Light 350 (# 10)
* Fitting: GReddy direct fitting adopted
* For BRZ (ZD8), it is necessary to cut a part of the bumper to secure the opening. GR86 (ZN8) is unprocessed.
* When installing the outlet net, it is necessary to cut the inner fender.
* When installing the sensor (oil temperature / hydraulic pressure), an M18 sensor adapter is required separately. The sensor terminal cannot be installed. The guideline for the amount of oil exchange when the oil cooler kit is installed is [genuine oil exchange amount + 1L].

Reference work time: 4.0 H

Kit changes the oil filter used by the vehicle to GReddy Sport Oil Filter QX-03 Toyota Nissan. Filter is available on our site as well.

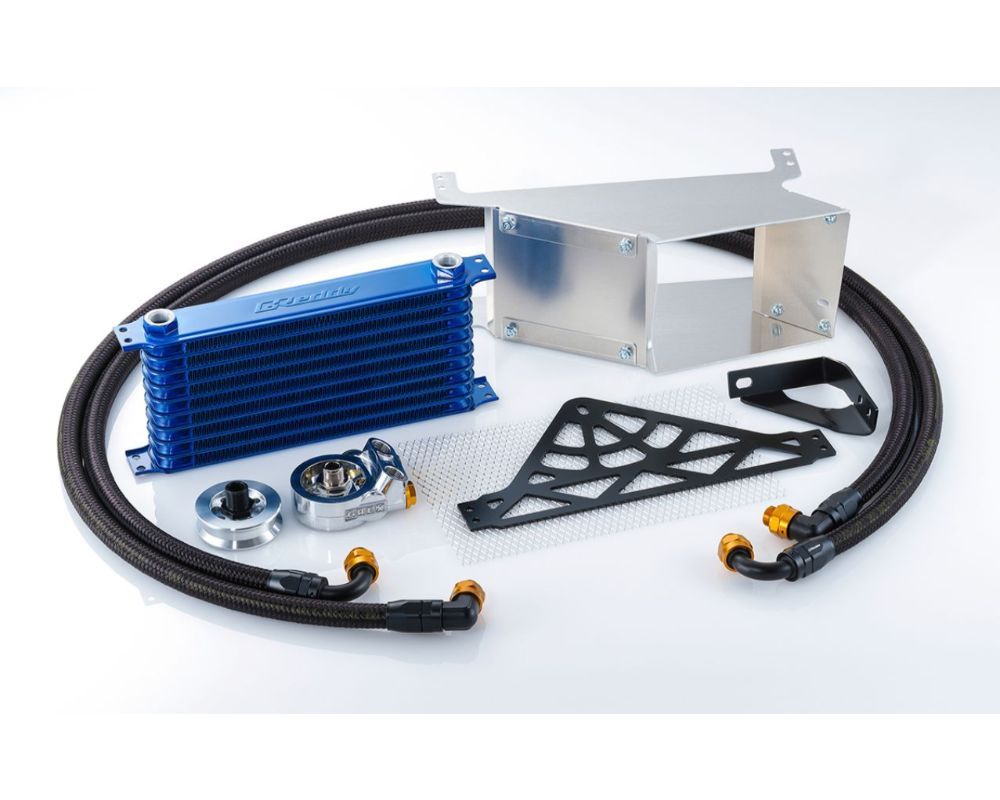

Product Composition

● Core body (10 steps: L299 X H142.6 X W50)
● Hose (1950 mm / 1650 mm)
● Fitting (90 ° / 90 ° / 120 ° / 120 °)
● Oil block (TYPE-E) Inlet duct (baffle plate)
● Outlet net
● A set of dedicated stays
