Tensility Motorsports (TMS)

Tensility Motorsports (TMS) ReFlex Harness Kit BMW B58 Gen2

Tensility Motorsports (TMS) ReFlex Harness Kit BMW B58 Gen2

Regular price $679.00 USD
Regular price $699.00 USD Sale price $679.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration
Firmware

Plug and play harness for ReFlex Plus for BMW B58 engine B58B3001.



The TMS ReFlex Harness Kit is a plug and play harness designed for direct connection to the ReFlex Plus controller, improving reliability and reducing loose connections and lengthy troubleshooting.

Features

  • No splicing or permanent modifications required

  • Return car to stock if desired

  • Seamless connection with ReFlex Plus, ReFlex low pressure fuel sensor, and TMS Flex Fuel Kit

Ratings

  • CAN bus wire: SAE J2284 Communication Standard for High-Speed CAN (HSC) and CAN FD applications

    • Ensures no loss or corruption of data in critical systems

  • All other wires: SAE J1128 Low Voltage Primary Cable Standard

    • Suitable for sensors, power, and engine bay environments

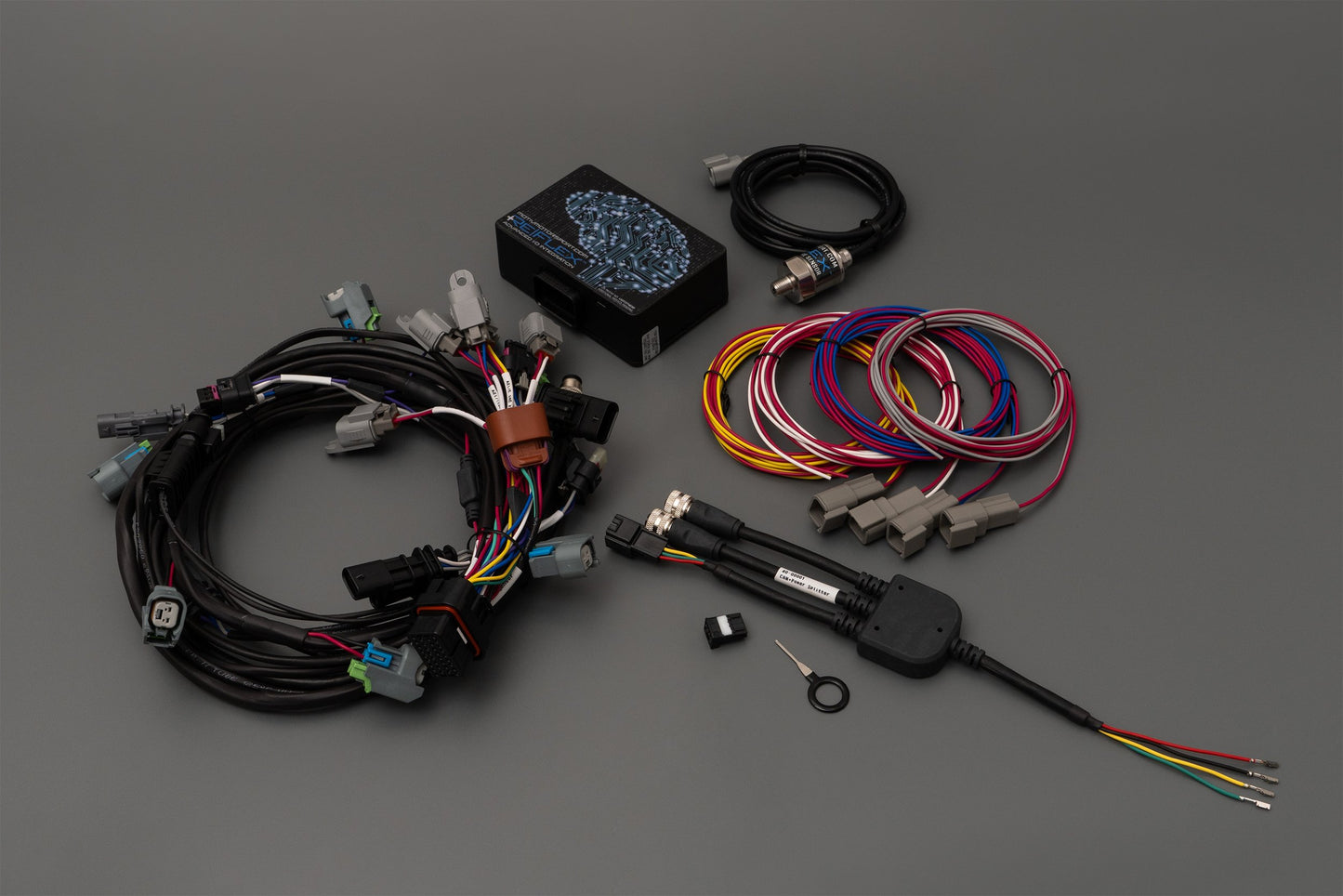

Included:

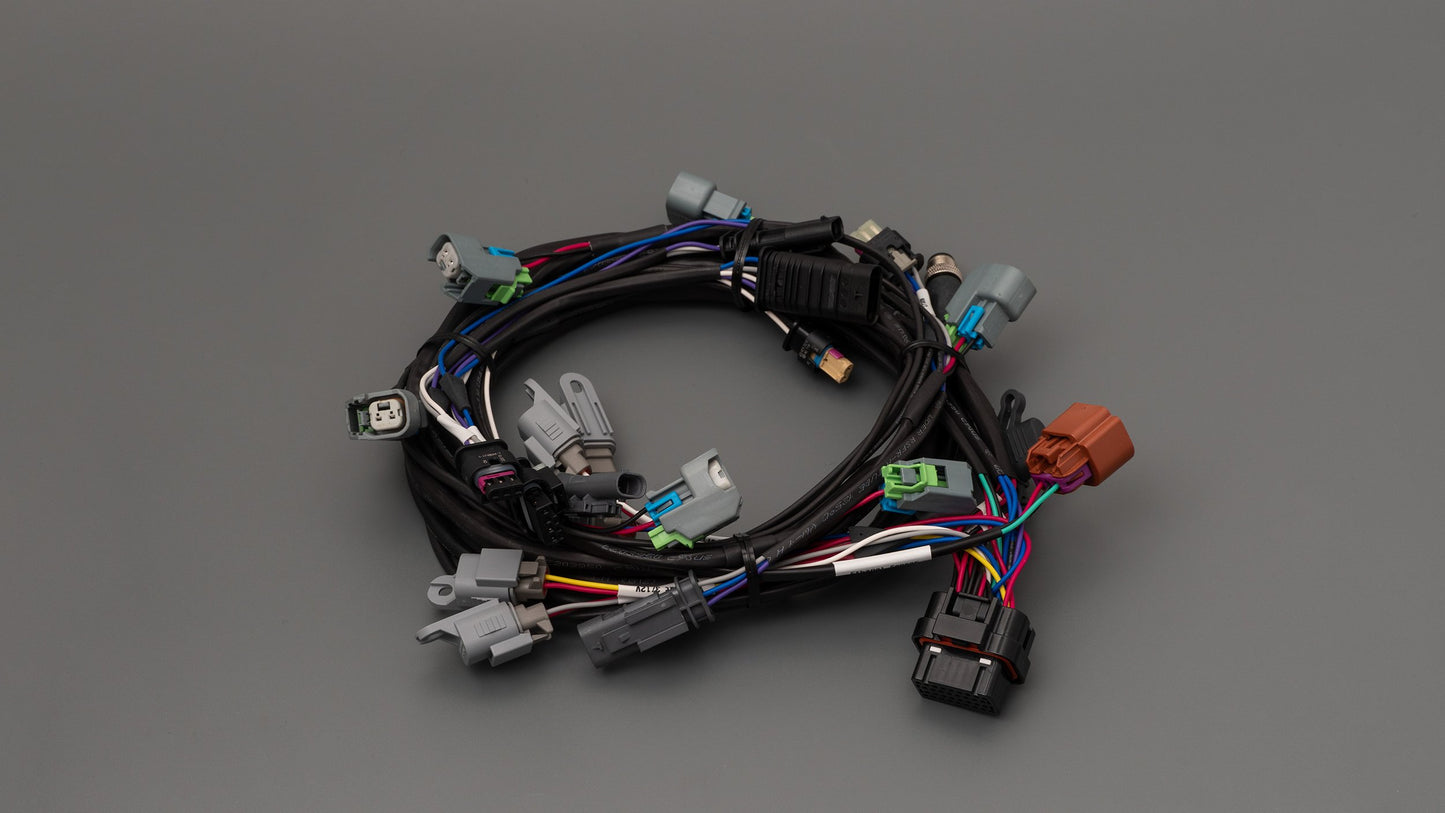

  • ReFlex™ plug and play harness

    • This plug and play harness connects to all of the following: port injection, ethanol sensor, low pressure fuel sensor, MAP, intake CAM, and crank sensor.

  • CAN + power splitter

    • The CAN + power splitter connects the harness to the body domain controller in the passenger footwell behind the kick-plate.

  • Auxiliary cable pack

    • Four additional cables are included to simplify future expansions such as additional sensors, methanol, or NOS.  These 8 ft. cables plug directly into the unused ReFlex™ harness auxiliary ports Aux Out 1/2/3 and Aux in 4 (PSI).

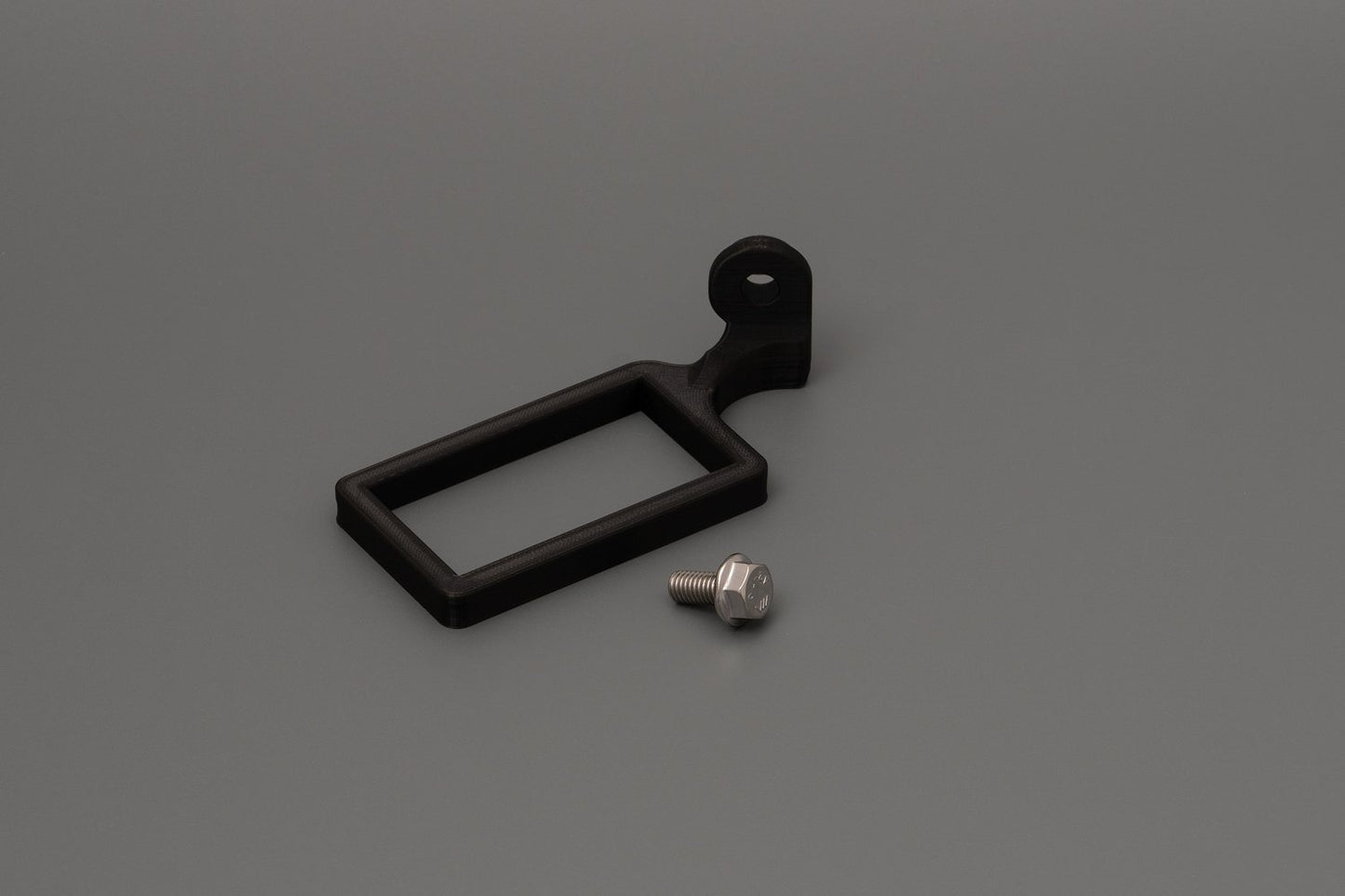

  • ReFlex Plus™ mounting bracket

    • The mounting bracket holds the ReFlex™ safely in place in the access compartment next to the engine bay on the passenger side.

  • Available with or without ReFlex Plus™ and Motiv™ 0-10 Bar Pressure Sensor

Compatible Car Models:

  • 2018-present BMW™ 340i G20
  • 2021-present BMW™ 240i G22
  • 2022-present BMW™ 440i G42
  • 2018-present BMW™ X3M40i G01
  • As well as other gen 2 b58 vehicles.

          SKU:
