Product Details
About this part

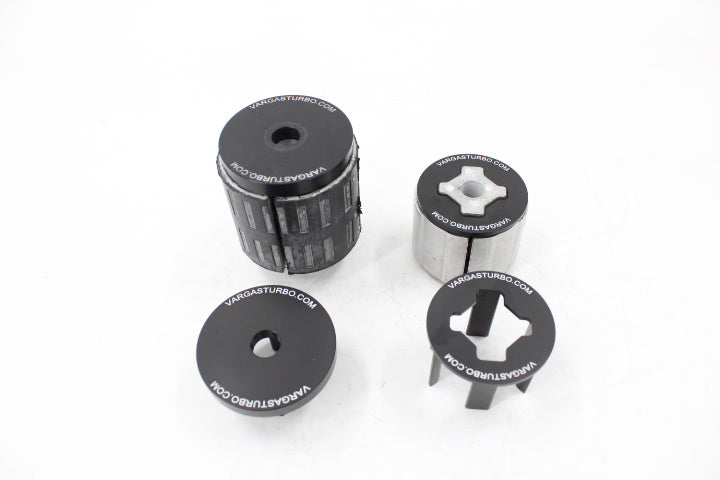

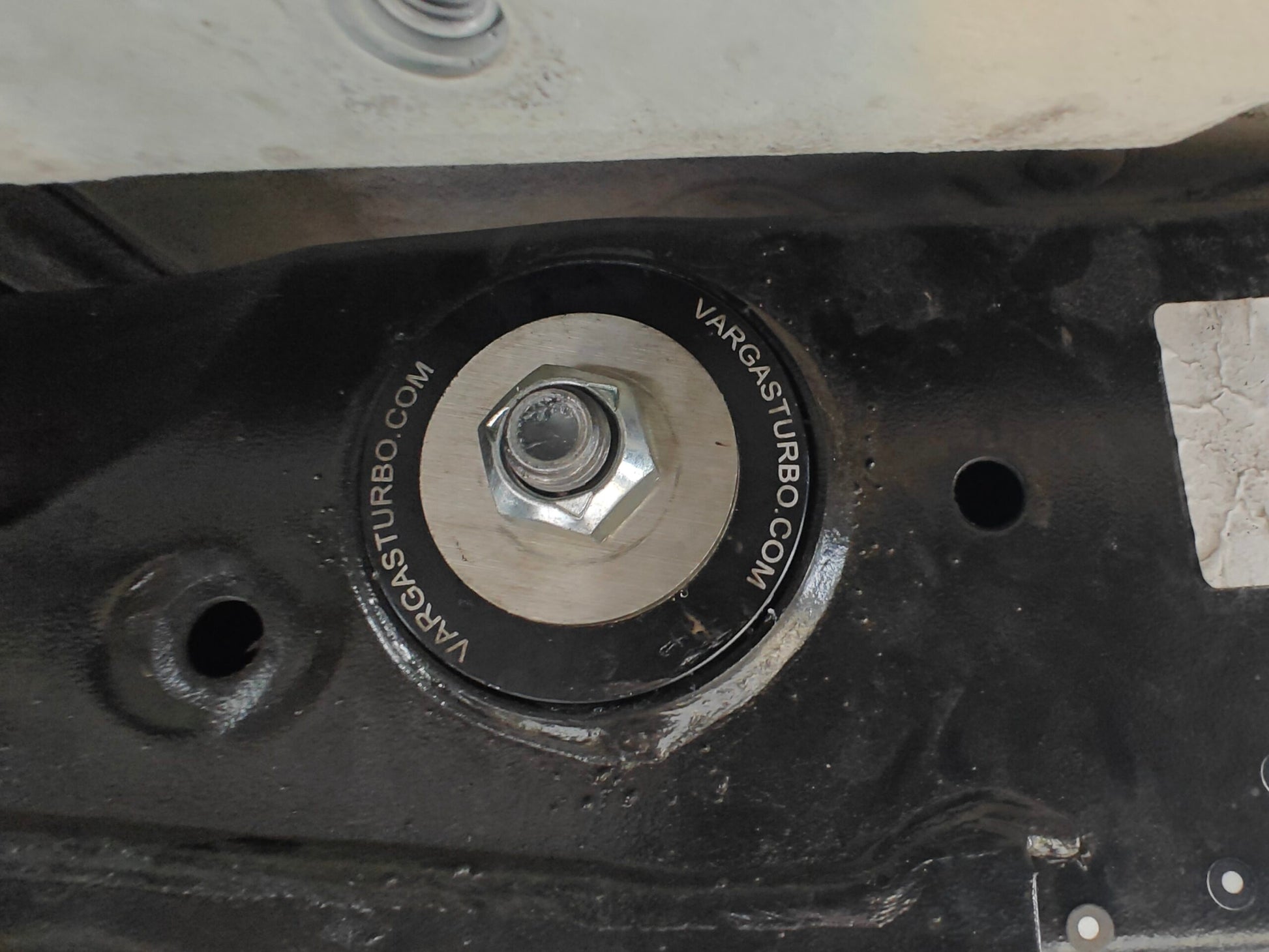

Looking to fix the diff bolt issue on your F9X X3/4M? VTT has taken a 3 pronged approach by offering a triple solution, one part of the solution is the Rear diff bushing insert kit. This is pressed into the factory bushing and fills the voids in the bushing. This keeps the stock bushing ride compliance but removes any unwanted movement. These are sold as a kit and are available in rear side only, and front and rear sides both. Adding in the front side increases installation time, and difficulty as the diff will need to be dropped, and a tool will need to be used to press in the front side bushing

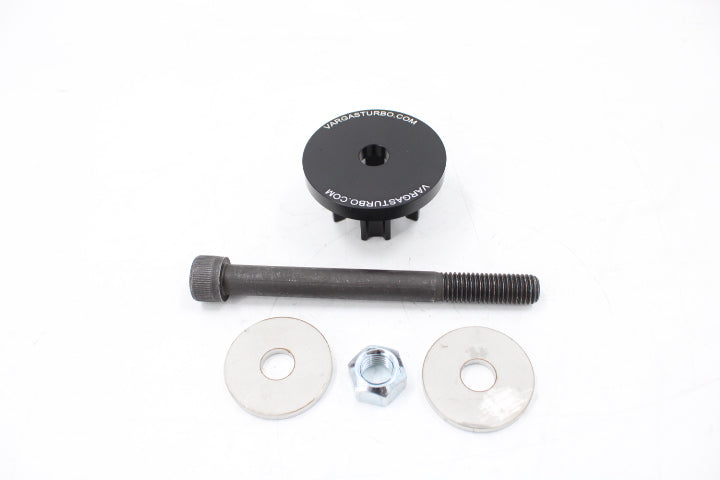

Kit includes:
- One Billet Bushing insert
- Two 46mm Hardened Steel Washers
- One 12.9 M14 Bolt
- One M14 Lock nut
- Optional front side bushing which will fully lock down the bushing. (requires the diff to be lowered, and the bushing pressed into the front)
Fitment
Not sure it fits? Contact us with your car's year, model and VIN and we'll help you confirm before you order.
If a part doesn't fit as expected, contact us and we'll work with you to resolve it.
Majority of products have a fitment section in the product description or within the title.
