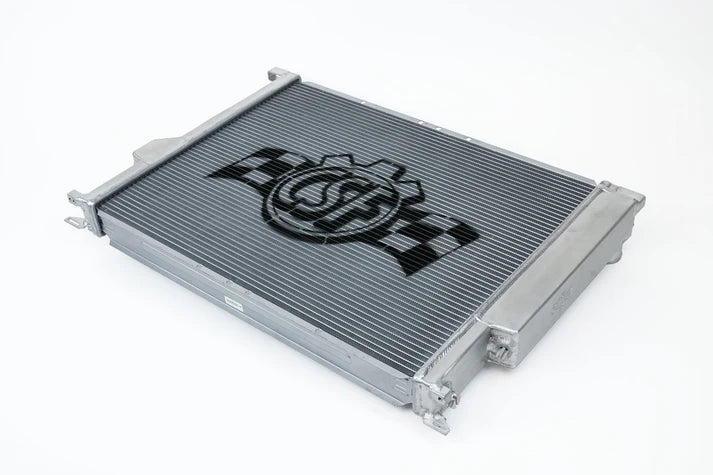

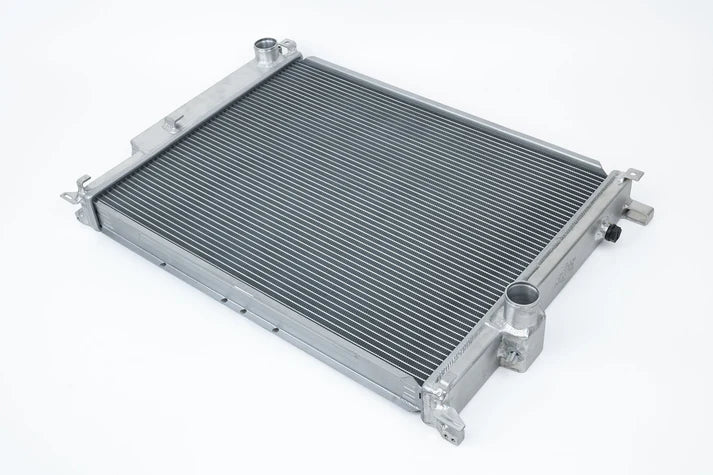

CSF High-Performance All-Aluminum Radiator BMW S54 Swap E36

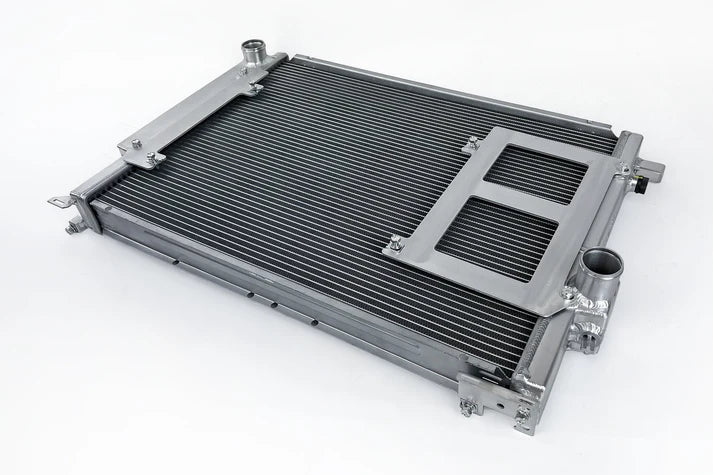

At first glance the #7211 looks very similar to CSF's E36 M3 Radiator (#3054). While the overall shape is very similar, there are several key features that make the new swap radiator special. Because the S54 requires a much more robust oil cooling system than the E36's S52/S50, CSF made special provisions to fit two different race spec oil coolers. Please note, this radiator and oil cooler combination can be used for S50 & S52 Swaps as well. To do this, the height of the radiator was reduced slightly so the CSF race spec coolers can fit it in a factory style location. The radiator includes a custom designed oil cooler mounting bracket which has provisions to fit both oil coolers (CSF #8032 & #8240). In addition, a custom designed radiator cover plate allows for an optimized coolant overflow line placement which is concealed for an OEM+ appearance.

CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.

The 2-Row 42mm aluminum core offers the largest coolant capacity possible and incredible heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. All mounting brackets are CNC Machined for precise fitment. The cooling inlet/outlet connections use E36 OEM

Features and Benefits

• 2-Row - 42mm Ultra-High-Performance Core
• CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• All-Aluminum Race Style Drain Plug
• Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look
• Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400 - not included)
• Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
