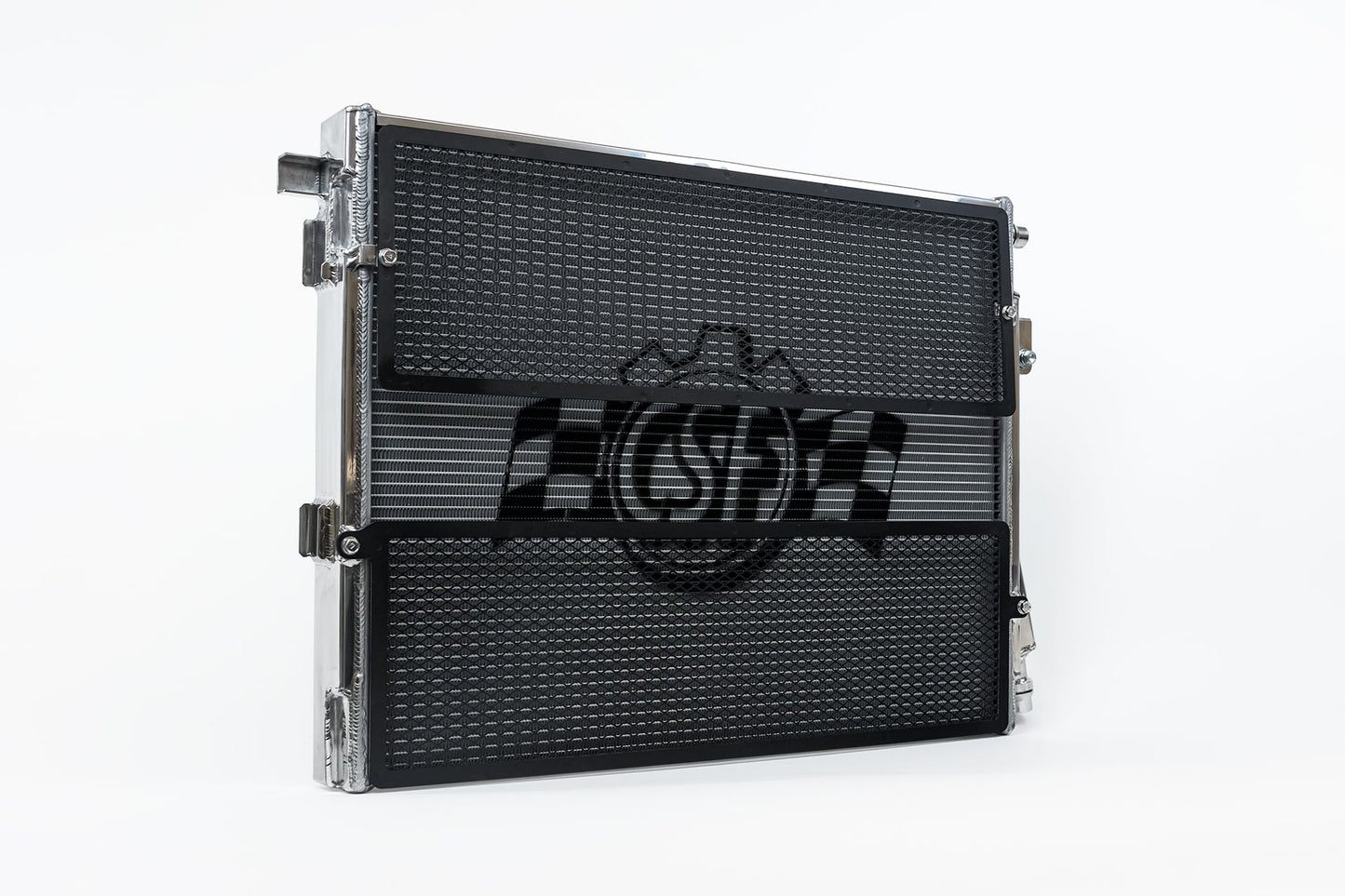

CSF High-performance Front Mount Heat Exchanger BMW X3M X4M F97 F98 S58

CSF began designing the Heat Exchanger for the X3M/X4M using all the experience and data gathered from the entire G8X Cooling Suite. The first hurdle in designing a Front Mount Heat Exchanger for these vehicles was the space constraints. The X3M and X4M use a different transmission oil cooler than the G8X models that restricted increasing the size of the Heat Exchanger due to the mounting cradle. After testing a few smaller core options, CSF determined it made more sense to combine the Heat Exchanger with a Transmission Cooler Upgrade to maximize size and performance.

By combining the Heat Exchanger and Transmission Cooler into a full cooling module, CSF was able to run the same size core as the G8X Heat Exchanger. The Auto Transmission Cooler uses the same dual core design as the G8X Transmission Cooler which is fitted to the new Heat Exchanger. This creates a cooling module that comes as a single unit. The combination not only solves two cooling issues for the X3M and X4M, but also lowers costs which are passed along to the customer.

• Significantly Reduces Intake Air Temperatures (IATs) for Maximum Performance (with Faster Heat Soak Recovery)
• Improves Air Flow to the Rest of the Cooling System for Lower Engine Coolant Temperatures
• Heat Exchanger: 2-Row – 42mm Ultra-High-Performance Core
• 6.5mm Tall Multi-Louvered Fin with CSF’s Exclusive B-Tube Technology
• Heat Exchanger: Upper Rock Guard and Transmission Cooler Mounting Kit
• Heat Exchanger: Hand Brushed Satin Finish
• Transmission Cooler: Dual-Core Design – 201% Increase in Core Volume
• Transmission Cooler: Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• Transmission Cooler: Pre-installed foam strips for increased sealing
• CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• 2-Year Limited Warranty

Applications:

• 2020+ BMW F97 X3M (incl. Competition)
• 2020+ BMW F98 X4M (incl. Competition)

Replaces OEM Part Numbers:

• Heat Exchanger: 17-11-9-468-695
• Transmission Cooler: 17-11-8-693-360
