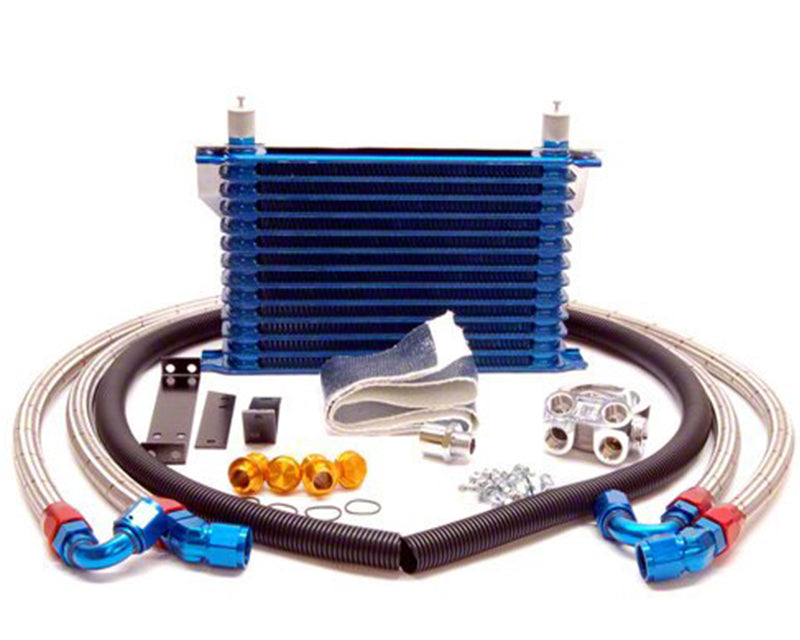

Greddy 10 Row Oil Cooler Kit Toyota FRS/Subaru BRZ 2013-2016

GPP and GReddy/GREX Oil Cooler Kits help prolong the life of your oil and in turn your internal engine components. Hard driving causes higher engine temperatures. GPP and GReddy/GREX oil coolers are an excellent addition, and are especially effective in harsh driving environments. By using a similar inner-fin core design as our famous intercoolers, we are able to increase oil capacity, decrease oil temperatures, and extend engine and oil life. Our systems also offer an internal (or external) thermostat to allow for quick engine warm up. The efficient core and durable steel-braided lines ensure good flow and a leak free installation.

Kit changes the oil filter used by the vehicle to GReddy Sport Oil Filter QX-03 Toyota Nissan. Filter is available on our site as well.

also fits Subaru BRZ
NOTE* - This is a JDM Specific 86 Kit, which requires the relocation of an electric module (brackets not included) See image
(ZN6) 4U-GSE / (ZC6) FA20
positioned in front of the radiator, front right side of the bumper
10 row, Circuit Spec. with air ducting
Built in thermostat oil block adapter (operating temperature: 75c - 82c ±2c)
(also includes GReddy M18 Sensor Terminal fitting (with 3 1/8PT ports)
light-weight nylon mesh hose & fittings
NS1010G core (+540cc or +0.57 quarts)
requires use of QX-1,3, SX-1,3 oil filter
