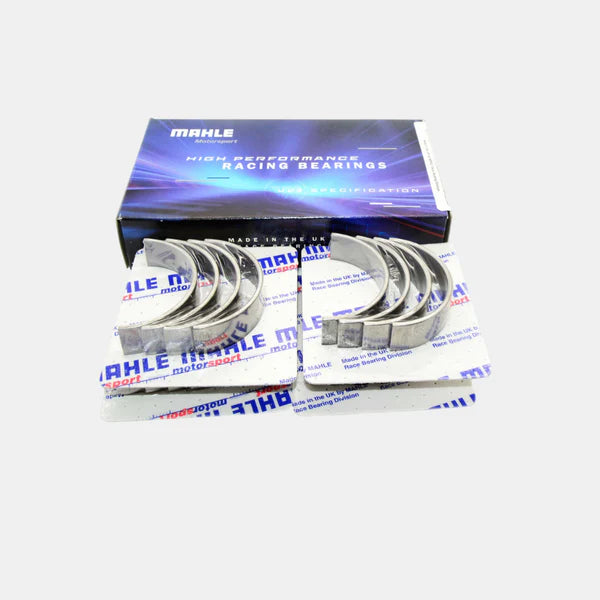

MAHLE Rod Bearing Set BMW M3 S65 V8 E90/E92/E93

These bearings are manufactured in the UK to the highest quality by the very people who make bearings for F1 engines, as well as all other leading race series including Le Mans, NASCAR, MotoGP, WRC, DTM!

Nominal optimal clearance of 54micron (43 to 57 micron range) calculated using proprietary MAHLE Motorsport software that accurately predicts housing swell, bearings loads, oil film thickness and power loss. The same software is used to design Formula 1, Le Mans, NASCAR?, MotoGP, WRC & DTM bearings!

Bearing Construction

Manufactured with high strength steel back with a cast bronze substrate and finished with a lead indium overlay, originally known as VP2. This unique structure gives a higher fatigue strength than other Race bearings along with better conformability. This exact material is still used in race engines in all major race series globally! This material should not be confused with other “tri metal” bearings. Other parts are sintered which gives a lower fatigue strength and use lead / tin overlay.

Laser Marking

All MAHLE Motorsport bearings are laser marked. Traditional stamping can cause bearing distortion and prevent efficient heat transfer to the housing leading to failure

Vehicle Fitment
