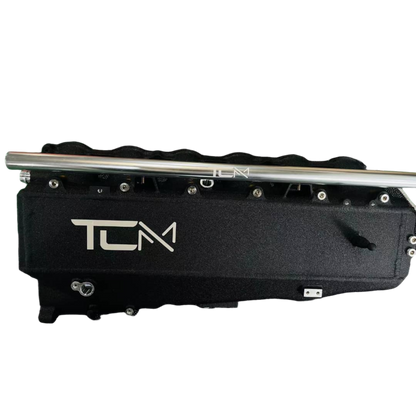

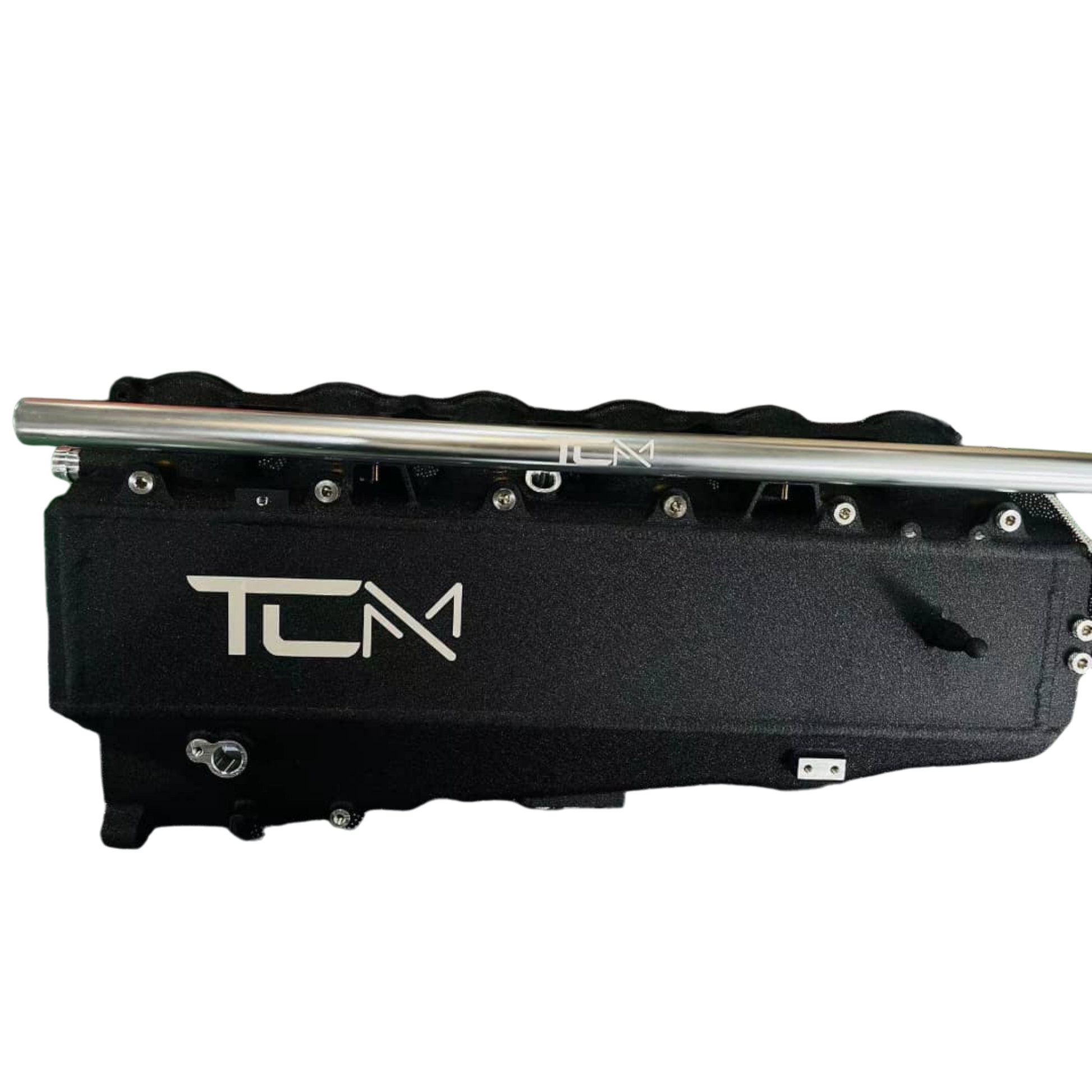

TCM B58 Gen2 Billet Intake Manifold with Port Injection BMW M240i/M340i/M440i/Supra/X3 G Chassis

TCM is proud to release the B58 Gen 2 CNC'd Aluminum Intake Manifold with Optional Port Injection.

Free Shipping within Continental US

A TCM B58 Intake Manifold is an essential upgrade for any enthusiast looking to maximize the performance of their B58 engine.

Our Intake Manifold is made from high-quality Aluminum. This unit is CNC'd our of Aluminum instead of the cheap Cast units that you'll see on the market. This leads to a stronger design that will last the test of time. It also makes a stronger unit, to handle increased boost pressures.

This unit's charge cooler  is significantly larger than the factory unit. With a larger core, you get more airflow going through the charge cooler allowing it to cool your air more. With the larger design also brings an increase in coolant volume. More coolant means it can absorb more heat, before it gets hot. Both of these together means you'll get colder air going into your engine and the air will stay cold for longer.

The intake manifold comes with an optional 6 port injection rail. The holes will come pre-drilled and capped if not wanting to be used.

The intake manifold also includes NPT ports for each cylinder for Meth or Nitrous injection.



Features:

• Intercooler volume increased by 110%
• Heat exchange area increased by 65%
• Utilizes a High Performance, Bar/Plate Air-to-Water Intercooler Core. Significantly higher capacity than OEM.
• Significantly Lower Pressure Drop Across the Core Compared to OEM
• CNC/Billet Aluminum - NOT Cast
• Easy Access to  Oil Filter for Quick Oil Changes
• Integrated Sensor Pad with Three 1/8″ NPT Ports

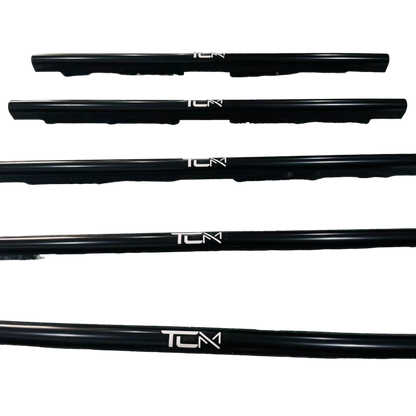

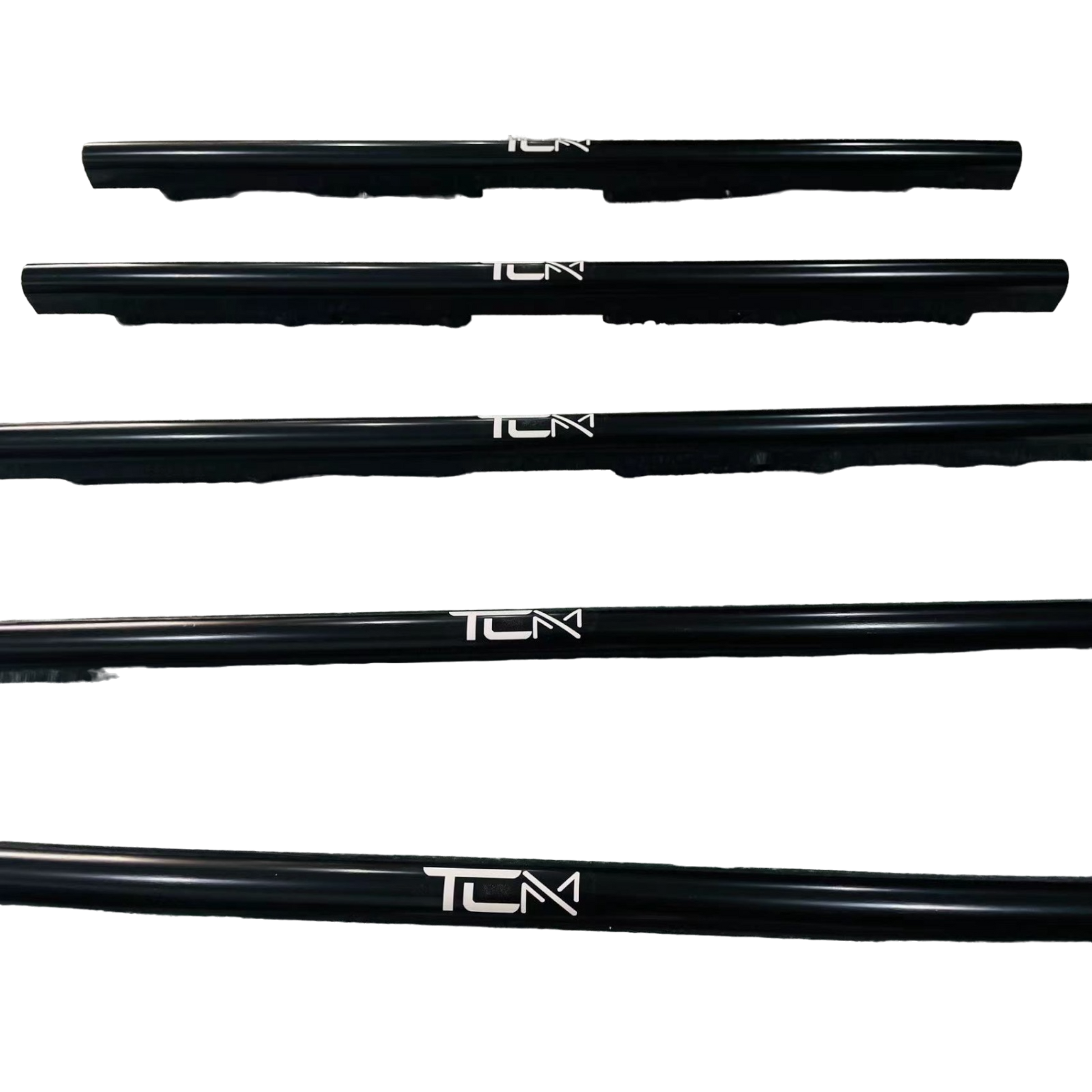

• Optional Fuel Rail for Top Feed Port Injection
• Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
• Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
• Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
• Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)

Fitment:

*Fitment not confirmed on MildHybrid models. Fitment returns for mildhybrid models will not be accepted.

2022+	M240iX		G42	B58C/B58D
2018+	M340i		G20	B58C/B58D
2018+	M340iX*		G20	B58C/B58D
2018+	M340iX*		G21	B58C/B58D
2020+	440i		G22	B58C/B58D
2020+	440i		G23	B58C/B58D
2020+	440i		G26	B58C/B58D
2018+	540i		G30	B58C/B58D
2018+	540iX		G30	B58C/B58D
2018+	540iX		G31	B58C/B58D
2018+	630iX		G32	B58C/B58D
2018+	640i		G32	B58C/B58D
2018+	640iX		G32	B58C/B58D
2018+	740i		G11	B58C/B58D
2018+	745e		G11	B58C/B58D
2018+	740i		G12	B58C/B58D
2018+	740iX		G12	B58C/B58D
2018+	740Li		G12	B58C/B58D
2018+	740LiX		G12	B58C/B58D
2018+	745eX		G12	B58C/B58D
2018+	745Le		G12	B58C/B58D
2018+	745LeX		G12	B58C/B58D
2018+	840i		G14	B58C/B58D
2018+	840iX		G14	B58C/B58D
2018+	840i		G15	B58C/B58D
2018+	840iX		G15	B58C/B58D
2018+	840i		G16	B58C/B58D
2018+	840iX		G16	B58C/B58D
2018+	X3 M40iX		G01	B58C/B58D
2018+	X4 M40iX		G02	B58C/B58D
2018+	X5 45i		G05	B58C/B58D
2018+	X5 45iX		G05	B58C/B58D
2018+	X5 45eX		G05	B58C/B58D
2018+	X6 40i		G06	B58C/B58D
2018+	X6 40iX		G06	B58C/B58D
2018+	Z4 M40i		G29	B58C/B58D
2018+	X7 40iX		G07	B58C/B58D
